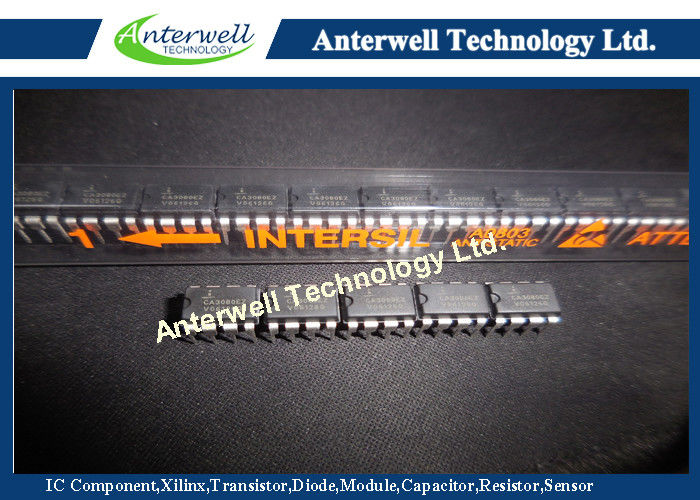

CA3080EZ Circuit Board Chips , Original IC Electronics Compoents 36V

CA3080EZ

2MHz, Operational Transconductance Amplifier

The CA3080 and CA3080A types are Gatable-Gain Blocks which utilize the unique operational-transconductanceamplifier (OTA) concept described in Application Note AN6668, “Applications of the CA3080 and CA3080A HighPerformance Operational Transconductance Amplifiers”. The CA3080 and CA3080A types have differential input and a single-ended, push-pull, class A output. In addition, these types have an amplifier bias input which may be used either for gating or for linear gain control. These types also have a high output impedance and their transconductance (gM) is directly proportional to the amplifier bias current (IABC). The CA3080 and CA3080A types are notable for their excellent slew rate (50V/µs), which makes them especially useful for multiplexer and fast unity-gain voltage followers. These types are especially applicable for multiplexer applications because power is consumed only when the devices are in the “ON” channel state. The CA3080A’s characteristics are specifically controlled for applications such as sample-hold, gain-control, multiplexing, etc.

Features

• Slew Rate (Unity Gain, Compensated). . . . . . . . . . 50V/µs

• Adjustable Power Consumption. . . . . . . . . . . . .10µW to 30µW

• Flexible Supply Voltage Range. . . . . . . . . . . . . ±2V to ±15V

• Fully Adjustable Gain . . . . . . . . . . . . . . . . 0 to gMRL Limit

• Tight gM Spread:

- CA3080. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2:1

- CA3080A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.6:1

• Extended gM Linearity . . . . . . . . . . . . . . . . . . . 3

Decades Applications

• Sample and Hold                   • Multiplier                • Multiplexer

 • Comparator                          • Voltage Follower

Absolute Maximum Ratings

Supply Voltage (Between V+ and V- Terminal) . . . . . . . . . . . . . 36V

Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5V

Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . V+

to VInput Signal Current. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1mA

Amplifier Bias Current (IABC). . . . . . . . . . . . . . . . . . . . . . . . . . . 2mA

Output Short Circuit Duration (Note 1). . . . . . . . . . . . . No Limitation
