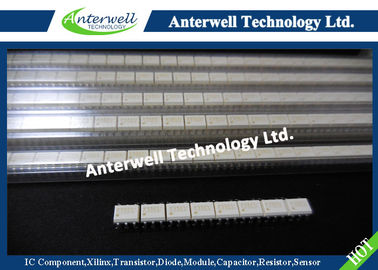

TLP3063F Integrated Circuit Chip OFFICE MACHINE HOUSEHOLD USE EQUIPMENT TRIAC DRIVER SOLID STATE RELAY

OFFICE MACHINE HOUSEHOLD USE EQUIPMENT TRIAC DRIVER SOLID STATE RELAY

  The TOSHIBA TLP3061F(S), TLP3062F(S), TLP3063F(S) consist of a zero voltage crossing turn-on photo-triac optically coupled to a gallium arsenide infrared emitting diode in a six lead plastic DIP package. All parameters are tested to the specifications of TLP3061(S) TLP3062(S) and TLP3063(S). (both condition and limits)

• Peak Off-State Voltage : 600 V (min)

• Trigger LED Current :

15 mA (max) (TLP3061F(S))

10 mA (max) (TLP3062F(S))

5 mA (max) (TLP3063F(S))

• On-State Current : 100 mA (max)

• Isolation Voltage : 5000 Vrms (min)

• UL Recognized : UL1577, File No. E67349

• SEMKO Approved :

SS EN60065

SS EN60950, File No.9841113

• BSI Approved :

BS EN60065, File No.8385

BS EN60950, File No.8386

• Option (D4) type VDE approved:

DIN EN60747-5-2 Approved No. 40009302
