Product Details:
Payment & Shipping Terms:
|
VDD To GND: | 0.3V To +6V | All Other Pins To GND: | .-0.3V To +6V |
---|---|---|---|
Operating Temperature Range.: | . -40NC To +125NC | Junction Temperature: | +150NC |
Storage Temperature Range: | . -65NC To +150NC | ||
High Light: | electronics ic chip,integrated circuit components |
► Dual, 256-Tap, Linear Taper Positions
► Single +2.6V to +5.5V Supply Operation
► Low (< 1µA) Quiescent Supply Current
► 10kI, 50kI, 100kI End-to-End Resistance Values
► SPI-Compatible Interface
► Power-On Sets Wiper to Midscale
► -40NC to +125NC Operating Temperature Range
The MAX5386/MAX5388 dual, 256-tap, volatile, low-voltage linear taper digital potentiometers offer three end-to-end resistance values of 10kI, 50kI, and 100kI. Operating from a single +2.6V to +5.5V power supply these devices provide a low 35ppm/NC end-to-end temperature coefficient. The devices feature an SPIK interface.
The small package size, low supply voltage, low supply current, and automotive temperature range of the MAX5386/MAX5388 make the devices uniquely suitable for the portable consumer market, battery backup industrial applications, and the automotive market.
The MAX5386 includes two digital potentiometers in a voltage-divider configuration. The MAX5388 includes one digital potentiometer in a voltage-divider configuration and one digital potentiometer in a variable-resistor configuration. The MAX5386/MAX5388 are specified over an extended -40NC to +125NC temperature range and are available in 16-pin, 3mm x 3mm TQFN or 10-pin, 3mm x 5mm FMAXM packages, respectively.
Ordering Information
PART | PINPACKAGE | END-TO-END RESISTANCE (kI) |
MAX5386LATE+ | 16 TQFN-EP* | 10 |

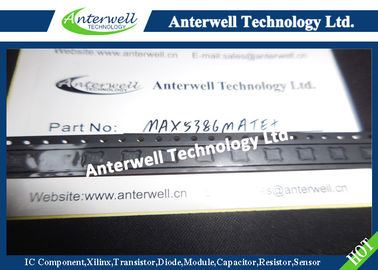

MAX5386MATE+ | 16 TQFN-EP* | 50 |
MAX5386NATE+ | 16 TQFN-EP* | 100 |
MAX5388LAUB+ | 10 FMAX | 10 |
MAX5388MAUB+ | 10 FMAX | 50 |
MAX5388NAUB+ | 10 FMAX | 100 |
Pin Configurations
