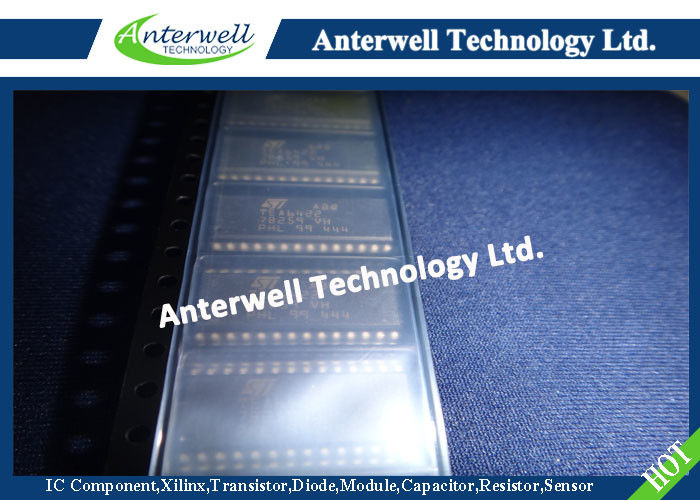

TEA6422 Integrated Circuit Chip new & original BUS-CONTROLLED AUDIO MATRIX

: Large Image : TEA6422 Integrated Circuit Chip new & original BUS-CONTROLLED AUDIO MATRIX

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	TEA6422

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	7800pcs

Contact Now

Detailed Product Description

Supply Voltage:	10 V	Supply Current:	3 MA
Ripple Rejection:	80 DB	Input Resistance:	50 KΩ
Channel Separation:	90 DB	Output Resistance:	50 Ω
Highlight:	integrated circuit ic , integrated circuit components

TEA6422

BUS-CONTROLLED AUDIO MATRIX

■ 6 Stereo Inputs

■ 3 Stereo Ouputs

■ Gain Control 0 dB/Mute for each Output

■ Cascadable (2 different addresses)

■ Serial Bus Controlled

■ Very Low Noise

■ Very Low Distorsion

■ Fully ESD Protected

■ Wide Audio Dynamic Range ( 3 VRMS)

DESCRIPTION

The TEA6422 switches 6 stereo audio inputs on 3 stereo outputs.

All the switching possibilities are changed through the I2C BUS.

ABSOLUTE MAXIMUM RATINGS

Symbol	Parameter	Value	Unit
V_CC	Supply Voltage	12	V
T_oper	Operating Temperature	0, + 70	℃
T_stg	Storage Temperature	- 20, + 150	℃

THERMAL DATA

R_th(j-a)

Junction - ambient Thermal Resistance

SDIP24

SO28

℃/W

SHRINK DIP24 (Shrink Plastic Package)

ORDER CODE: TEA6422

TEA6422 Integrated Circuit Chip new & original BUS-CONTROLLED AUDIO MATRIX

SO28 (Plastic Monopackage)

ORDER CODE: TEA6422D

TEA6422 Integrated Circuit Chip new & original BUS-CONTROLLED AUDIO MATRIX

PIN CONNECTIONS

TEA6422 Integrated Circuit Chip new & original BUS-CONTROLLED AUDIO MATRIX

BLOCK DIAGRAM

TEA6422 Integrated Circuit Chip new & original BUS-CONTROLLED AUDIO MATRIX
