Product Details:
Payment & Shipping Terms:
|
| Voltage: | − 3.3 V To 68 V | Temperature: | −65 To +150°C |
|---|---|---|---|
| Output Current: | 1.5A-15A | Main Line:: | Ic,module,transistor,diodes,capacitor,resistor Etc |
| Package: | SMA | Factory Pack: | 5000/Tape & Reel |
| Datacode: | 2016+ | Resistance: | 250°C/W |
| High Light: | diode rectifier circuit,bridge rectifier circuit |
||

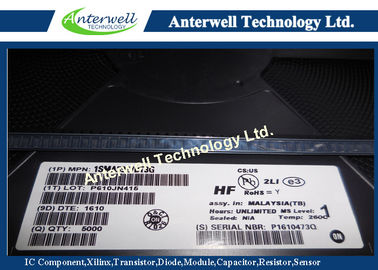

1SMA5913BT3 Series
1.5 Watt Plastic Surface Mount Zener Voltage Regulators
Features
• Standard Zener Breakdown Voltage Range − 3.3 V to 68 V
• ESD Rating of Class 3 (>16 kV) per Human Body Model
• Flat Handling Surface for Accurate Placement
• Package Design for Top Slide or Bottom Circuit Board Mounting
• Low Profile Package
• Ideal Replacement for MELF Packages
• Pb−Free Packages are Available
Mechanical Characteristics: CASE: Void-free, transfer-molded plastic FINISH: All external surfaces are corrosion resistant with readily solderable leads
MAXIMUM CASE TEMPERATURE FOR SOLDERING PURPOSES: 260°C for 10 seconds
POLARITY: Cathode indicated by molded polarity notch or cathode band FLAMMABILITY RATING: UL 94 V−0 @ 0.125 in
MAXIMUM RATINGS
| Rating | Symbol | Value | Unit |
| DC Power Dissipation @ TL = 75°C, Measured Zero Lead Length (Note 1) Derate above 75°C Thermal Resistance, Junction−to−Lead |
PD
RJL |
1.5 20
50 |
W mW/°C
°C/W |
| DC Power Dissipation @ TA = 25°C (Note 2) Derate above 25°C Thermal Resistance, Junction−to−Ambient |
PD
RJA |
0.5 4 250 |
W mW/°C °C/W |
| Operating and Storage Temperature Range | TJ, Tstg | −65 to +150 | °C |
