B340-13-F 3.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

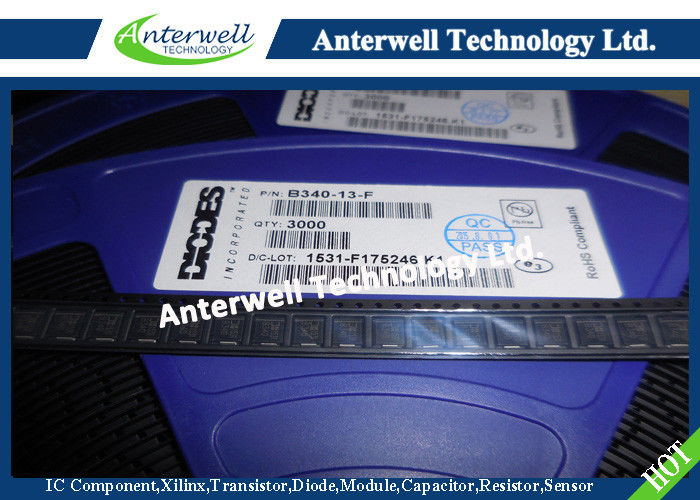

: Large Image : B340-13-F 3.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

Product Details:

Place of Origin:	Original
Brand Name:	DIODES
Certification:	Original
Model Number:	B340-13-F

Payment & Shipping Terms:

Minimum Order Quantity:	5 PCS
Price:	0.1USD
Packaging Details:	contact us for more details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	10000PCS/DAY

Contact Now

Detailed Product Description

Mechanical Data:	Classification Rating 94V-0	Case:	SMC
FEATURES:	Guard Ring Die Construction For Transient Protection	Type:	RECTIFIER
Case Material:	Molded Plastic. UL Flammabilit	Moisture Sensitivity:	Level 1 Per J-STD-020C
High Light:	circuit board ic , electronic components ic

B340-13-F SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

Features

Guard Ring Die Construction for Transient Protection

Ideally Suited for Automatic Assembly

Low Power Loss, High Efficiency

Surge Overload Rating to 125A Peak

For Use in Low Voltage, High Frequency Inverters,

Free Wheeling, and Polarity Protection Application

Mechanical Data

Case: SMC

Case Material: Molded Plastic. UL Flammability

Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020C

Terminals: Lead Free Plating (Matte Tin Finish).

Solderable per MIL-STD-202, Method 208

Polarity: Cathode Band

Marking Information: See Page 3

Ordering Information: See Page 3

Weight: 0.21 grams (approximate)

Maximum Ratings and Electrical Characteristics

Single phase, half wave, 60Hz, resistive or inductive load.

For capacitive load, derate current by 20%

Characteristic	Symbol	B320 / B330 / B340 / B350 / B360	Unit
Peak Reverse Current at Rated DC Blocking Voltage (Note 3)	^IRM	0.5	mA
Typical Capacitance (Note 2)	^CT	20	pF
Typical Thermal Resistance, Junction to Terminal	R_θJT	200	°C/W
Typical Thermal Resistance, Junction to Ambient (Note 1)	R_θJA	20	°C/W
Operating Temperature Range	T_j	90	°C
