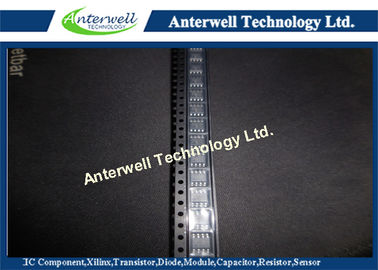

25LC256-I-SN Circuit Board 256K SPI Bus Serial EEPROM Ic Chip Original Electronics Components

: Large Image : 25LC256-I-SN Circuit Board 256K SPI Bus Serial EEPROM Ic Chip Original Electronics Components

Product Details:

Place of Origin:	Malaysia
Brand Name:	MICROCHIP
Certification:	Original Factory Pack
Model Number:	25LC256-I-SN

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiation
Packaging Details:	in well pack
Delivery Time:	1 Day
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	25000PCS

Contact Now

Detailed Product Description

Main Line::	Ic,module,transistor,diodes,capacitor,resistor Etc	Payment:	T/T, PayPal
Package:	SOP-8	Voltage:	2.5V To 5.5V
Shipment:	FEDEX, DHL,EMS,TNT	Temperature:	-40 To +80 °C
High Light:	circuit board ic , electronic chip board

25LC256-I-SN

Circuit Board256K SPI Bus Serial EEPROM

Features:

• Max. Clock 10 MHz

• Low-Power CMOS Technology:

- Max. Write Current: 5 mA at 5.5V, 10 MHz

- Read Current: 6 mA at 5.5V, 10 MHz

- Standby Current: 1μA at 5.5V

• 32,768 x 8-bit Organization

• 64-Byte Page

• Self-Timed Erase and Write Cycles (5 ms max.)

• Block Write Protection:

- Protect none, 1/4, 1/2 or all of array

• Built-In Write Protection:

- Power-on/off data protection circuitry

- Write enable latch

- Write-protect pin

• Sequential Read

• High Reliability:

- Endurance: 1,000,000 erase/write cycles

- Data retention: > 200 years

- ESD protection: > 4000V

• Temperature Ranges Supported:

- Industrial (I):

-40°C to +85°C

- Automotive (E):

-40°C to +125°C

• Pb-Free and RoHS Compliant

Description:

The Microchip Technology Inc. 25AA256/25LC256 (25XX256) are 256 Kbit Serial Electrically Erasable

PROMs.

The memory is accessed via a simple Serial Peripheral Interface (SPI) compatible serial bus.

The bus signals required are a clock input (SCK) plus sep-arate data in (SI) and data out (SO) lines.

Access to the device is controlled through a Chip Select (CS) input.

Communication to the device can be paused via the hold pin (HOLD). While the device is paused,

transitions on its inputs will be ignored, with the exception of Chip Select, allowing the host to service

higher priority interrupts.

The 25XX256 is available in standard packages including 8-lead PDIP and SOIC, and advanced

packaging including 8-lead DFN and 8-lead TSSOP

A part of stock list

RES 100R 1% RC0603FR-07100RL	YAGEO	1618	SMD0603
RES 0603 22K 1% RC0603FR-0722KL	YAGEO	1432	SMD0603
BC848B,215	NXP	1427/1KW	SOT-23
RES 0603 1K 1% RC0603FR-071KL	YAGEO	1608	SMD0603
TRANS BC807-40,215	NXP	1515/5CW	SOT-23
C.I LM317DCYR	TI	L3/66	SOT-223
RES 60.4R 1% CASE 0805 RC0805FR-0760R4L	YAGEO	1612	SMD0805
RES 0402 10K 1% RC0402FR-0710KL	YAGEO	1611	SMD0402
TRANS BC856B	NXP	1414/3BW	SOT-23
CAP 0,1UF 25V X5R 10% GRM155R61E104KA87D	MURATA	IA6320P05	SMD0402
RES 2K2 5% RC0805JR-072K2L	YAGEO	1547	SMD0805
FERRITE BREAD 100R 0603 MPZ1608D101BTA	TDK	1605	SMD
LED 0603 RED LTST-C193KRKT-5A	LITE-ON	1617	SMD0603
CAP 1210 47UF 10V X7R GRM32ER71A476KE15L	MURATA	IA6202EE6	SMD1210
C.I KSZ8041NLI	MICREL	1328	MLF-32
CONECTOR J1011F01PNL	PULSE	1608	RJ45
CAP 0603 330NF 50V X5R C1608X5R1H334K080AB	TDK	IB16C25166SD	SMD0603
RES 470R 5% CASE 0805 RC0805JR-07470RL	YAGEO	1605	SMD0805
CI AM79C202JC	AMD		PLCC-32
PT4207ESOH	POWTECH	11402	SOP-8
CANAL N PMV40UN2	NXP	1610/WK8	SOT-23
DIODOS MB6S	SEP	1605	SOP-4
DIODO RAPIDO ES2J-E3/52T-600V	VISHAY	1613/EJ	SMB
RES 0805 86K6 1% RC0805FR-0786K6L	YAGEO	1615	SMD0805
RES 0805 13K3 1% RC0805FR-0713K3L	YAGEO	1617	SMD0805
RES 0402 3M3 5% RC0402JR-073M3L	YAGEO	1611	SMD0402
C.I TPIC6595N (NOT LOT- 03LOCDT, 51A0CKT, 5AA)	TI	1106/12C5RHK	DIP-20
CAP 0603 33PF 50V 5% VJ0603A330JXACW1BC	VISHAY	1612	SMD0603
RES 0402 10M 1% RC0402FR-0710ML	YAGEO	1609	SMD0402
RES 0805 160R 1% RC0805FR-07160RL	YAGEO	1609	SMD0805
RES 0603 510R 1% RC0603FR-07510RL	YAGEO	1613	SMD0805
RES 0805 1K6 5% RC0805JR-071K6L	YAGEO	1613	SMD0805
RES 0805 620R 5% RC0805JR-07620RL	YAGEO	1615	SMD0805
C.I LM2576SX-ADJ	TI	JM34RP	TO-263
CAP CER 22UF 35V X5R C2012X5R1V226M125AC	TDK	IB16C22133SD	SMD0805
W25Q256FVFIG	WINBOND	1345	SOP-16
ATXMEGA32E5-AU	ATMEL	1516B	TQFP-32
MYC-C283-256N128D-I	MYIRTECH	15+	PCB
MYD-C283-256N128D-I	MYIRTECH	15+	PCB
ATMEGA328P-AU	ATMEL	1551	TFQP-32
ATMEGA2560-16AU	ATMEL	1603	QFP-100
AP5100WG-7	DIODES	AJO	SOT23-6
MBI5024GP	MBI	0024-2015152102/DP24021CHB	SSOP-24
APM5953KC	APM	2016/04/01 PDA00374	SOP-8
ULN2803AFWG	TOS	16ULTH16	SOP-18
74HC595D	NXP	1601	SOP-16
74HC138D	NXP	1612	SOP-16
DSI 45-16AR	IXYS	836G	TO-247
DSEP-30-06BR	IXYS	1423	TO-247
SGP30N60HS		HAA512	TO-220
