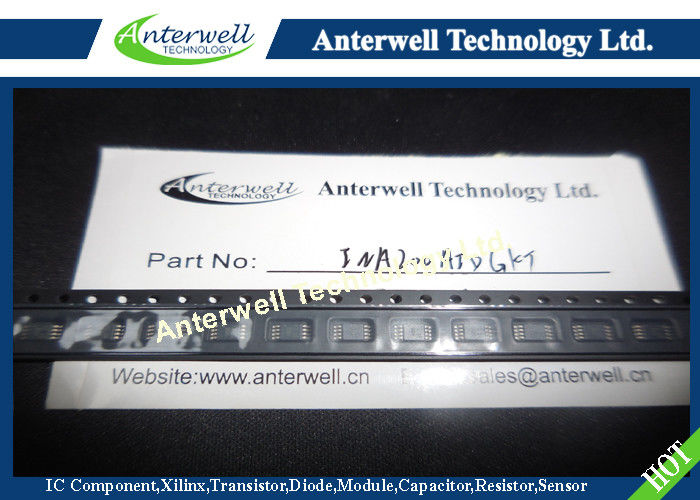

INA200AIDGKT Circuit Board Chips High Side Measurement Current Shunt Monitor

: Large Image : INA200AIDGKT Circuit Board Chips High Side Measurement Current Shunt Monitor

Product Details:

Place of Origin:	Thailand
Brand Name:	anterwell
Certification:	new & original
Model Number:	INA200AIDGKT

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	negotiation
Packaging Details:	please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, PayPal
Supply Ability:	3000pcs

Contact Now

Detailed Product Description

Supply Voltage, V+:	18V	Current-Shunt Monitor Analog Inputs, VIN+, VIN−:	Differential (VIN+) − (VIN−), Common Mode(2)
Differential (VIN+) − (VIN−):	−18V To +18V	Common Mode(2):	−16V To +80V
Comparator Analog Input And Reset Pins(2):	GND − 0.3V To (V+) + 0.3V	Analog Output, Out(2):	GND − 0.3V To (V+) + 0.3V
High Light:	electronic chip board , electronic components ic

INA200AIDGKT Circuit Board Chips High Side Measurement Current-Shunt Monitor

FEATURES

• COMPLETE CURRENT SENSE SOLUTION

• 0.6V INTERNAL VOLTAGE REFERENCE

• INTERNAL OPEN-DRAIN COMPARATOR

• LATCHING CAPABILITY ON COMPARATOR

• COMMON-MODE RANGE: −16V to +80V

• HIGH ACCURACY: 3.5% MAX ERROR OVER

TEMPERATURE

• BANDWIDTH: 500kHz (INA200)

• QUIESCENT CURRENT: 1800µA (max)

• PACKAGES: SO-8, MSOP-8

APPLICATIONS

• NOTEBOOK COMPUTERS

• CELL PHONES

• TELECOM EQUIPMENT

• AUTOMOTIVE

• POWER MANAGEMENT

• BATTERY CHARGERS

• WELDING EQUIPMENT

DESCRIPTION

The INA200, INA201, and INA202 are high-side current-shunt monitors with voltage output.

The INA200−INA202 can sense drops across shunts at common-mode voltages from −16V to 80V.

The INA200−INA202 are available with three output voltage scales: 20V/V, 50V/V, and 100V/V,

with up to 500kHz bandwidth.

The INA200, INA201, and INA202 also incorporate an open-drain comparator and internal reference providing a0.6V threshold. External dividers are used to set the current trip point. The comparator includes a latching capability, which can be made transparent by grounding (or leaving open) the

RESET pin.

The INA200, INA201, and INA202 operate from a single +2.7V to +18V supply, drawing a maximum of 1800µA of supply current. Package options include the very small MSOP-8 and the SO-8. All versions

are specified over theextended operating temperature range of −40°C to +125°C.
