Product Details:
Payment & Shipping Terms:
|
| Average Rectified Output Current @ TT = 100°C: | 3.0 A | Typical Capacitance: | 200 PF |
|---|---|---|---|
| Typical Thermal Resistance, Junction To Terminal: | 25 °C/W | Typical Thermal Resistance, Junction To Ambient: | 100 °C/W |
| Operating Temperature Range: | -55 To +125 °C | Storage Temperature Range: | -55 To +150 °C |
| High Light: | diode rectifier circuit,bridge rectifier circuit |
||

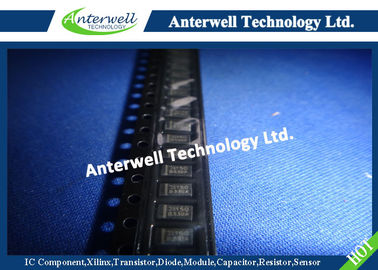

B320A - B360A
3.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
Features
Guard Ring Die Construction for Transient Protection
Ideally Suited for Automatic Assembly
Low Power Loss, High Efficiency
Surge Overload Rating to 100A Peak
For Use in Low Voltage, High Frequency Inverters, Free Wheeling, and Polarity Protection Application
Lead Free Finish/RoHS Compliant (Note 4)
| Dim | SMA | |
| Min | Max | |
| A | 2.29 | 2.92 |
| B | 4.00 | 4.60 |
| C | 1.27 | 1.63 |
| D | 0.15 | 0.31 |
| E | 4.80 | 5.59 |
| G | 0.10 | 0.20 |
| H | 0.76 | 1.52 |
| J | 2.01 | 2.30 |
| All Dimensions in mm | ||
*: Note: Device may have a semicircular indentation/ notch on
one side of the device (as shown).
Mechanical Data
Case: SMA Case
Material: Molded Plastic. UL Flammability
Classification 94V-0
Moisture Sensitivity: Level 1 per J-STD-020C
Terminals: Lead Free Plating (Matte Tin Finish).
Solderable per MIL-STD-202, Method 208
Polarity: Cathode Band
Approximate Weight: SMA 0.064 grams
Maximum Ratings and Electrical Characteristics @ TA = 25°C unless otherwise specified
Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%.
| Characteristic | Symbol | B320A | B330A | B340A | B350A | B360A | Unit |
|
Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage |
VRRM VRWM VR |
20 | 30 | 40 | 50 | 60 | V |
| RMS Reverse Voltage | VR(RMS) | 14 | 21 | 28 | 35 | 42 | V |
|
Average Rectified Output Current @ TT = 100°C |
IO | 3.0 | A | ||||
| Non-Repetitive Peak Forward Surge Current, 8.3ms single half sine-wave superimposed on rated load | IFSM | 100 | A | ||||
|
Forward Voltage (Note 3) @ IF = 3.0A |
VFM | 0.50 | 0.70 | V | |||
|
Peak Reverse Current @TA = 25°C at Rated DC Blocking Voltage (Note 3) @TA = 100°C |
IRM |
0.5 20 |
mA | ||||
| Typical Capacitance (Note 2) | CT | 200 | pF | ||||
| Typical Thermal Resistance, Junction to Terminal | R JT | 25 | °C/W | ||||
| Typical Thermal Resistance, Junction to Ambient (Note 1) | R JA | 100 | °C/W | ||||
| Operating Temperature Range | Tj | -55 to +125 | °C | ||||
| Storage Temperature Range | TSTG | -55 to +150 | °C | ||||
Notes: 1. Thermal Resistance: Junction to terminal, unit mounted on glass expoxy substrate with 2x3mm copper pad.
2. Measured at 1.0 MHz and applied reverse voltage of 4.0V DC.
3. Short duration test pulse used to minimize self-heating effect.
4. RoHS revision 13.2.2003. High Temperature Solder Exemption Applied, see EU Directive Annex Note 7.
