Product Details:
Payment & Shipping Terms:
|
Low Offset Voltage:: | 50 μV Max | Low Input Bias Current:: | 1 PA Max |
---|---|---|---|
Single-supply Operation:: | 1.8 V To 5 V | Low Noise:: | 22 NV/√Hz |
Micropower:: | 50 μA Max | ||
High Light: | power mosfet ic,silicon power transistors |
Precision Micropower, Low Noise CMOS
Rail-to-Rail Input/Output Operational Amplifiers

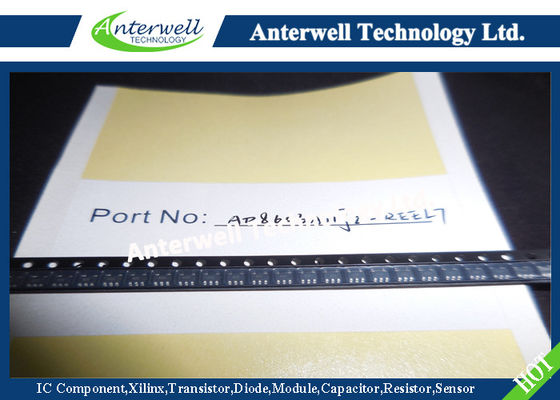

AD8603/AD8607/AD8609
FEATURES
Low offset voltage: 50 μV max
Low input bias current: 1 pA max
Single-supply operation: 1.8 V to 5 V
Low noise: 22 nV/√Hz
Micropower: 50 μA max
Low distortion
No phase reversal
Unity gain stable
APPLICATIONS
Battery-powered instrumentation
Multipole filters
Sensors
Low power ASIC input or output amplifiers
GENERAL DESCRIPTION
The AD8603/AD8607/AD8609 are single/dual/quad micropower rail-to-rail input and output amplifiers, respectively, that feature very low offset voltage as well as low input voltage and current noise.
These amplifiers use a patented trimming technique that achieves superior precision without laser trimming. The parts are fully specified to operate from 1.8 V to 5.0 V single supply or from ±0.9 V to ±2.5 V dual supply. The combination of low offsets, low noise, very low input bias currents, and low power consumption make the AD8603/AD8607/AD8609 especially useful in portable and loop-powered instrumentation.
The ability to swing rail-to-rail at both the input and output enables designers to buffer CMOS ADCs, DACs, ASICs, and other wide output swing devices in low power, single-supply systems. The AD8603 is available in a tiny 5-lead TSOT-23 package.
The AD8607 is available in 8-lead MSOP and 8-lead SOIC packages. The AD8609 is available in 14-lead TSSOP and 14-lead SOIC packages.
ABSOLUTE MAXIMUM RATINGS
Parameter1 | Rating |
Supply Voltage | 6 V |
Input Voltage | GND to VS |
Differential Input Voltage | ±6 V |
Output Short-Circuit Duration to GND | Indefinite |
Storage Temperature Range All Packages | –65°C to +150°C |
Lead Temperature (Soldering, 60 sec) | 300°C |
Operating Temperature Range | –40°C to +125°C |
Junction Temperature Range All Packages | -65°C to +150°C |
