Product Details:
Payment & Shipping Terms:
|
Feature 1: | Guard Ring Die Construction For Transient Protection | Feature 2: | Ideally Suited For Automated Assembly |
---|---|---|---|
Feature 3: | Low Power Loss, High Efficiency | Feature 4: | Surge Overload Rating To 30A Peak |
Feature 5: | For Use In Low Voltage, High Frequency Inverters, Free Wheeling, And Polarity Protection Application | Feature 6: | High Temperature Soldering: 260°C/10 Second At Terminal |
High Light: | diode rectifier circuit,bridge rectifier circuit |
Features
• Guard Ring Die Construction for Transient Protection
• Ideally Suited for Automated Assembly
• Low Power Loss, High Efficiency
• Surge Overload Rating to 30A Peak
• For Use in Low Voltage, High Frequency Inverters, Free
Wheeling, and Polarity Protection Application
• High Temperature Soldering: 260°C/10 Second at Terminal
• Lead Free Finish/RoHS Compliant (Note 1)
• Green Molding Compound (No Halogen and Antimony)
(Note 2)
Mechanical Data
• Case: SMA / SMB
• Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020
• Terminals: Lead Free Plating (Matte Tin Finish). Solderable per
MIL-STD-202, Method 208
• Polarity: Cathode Band or Cathode Notch
• Weight: SMA 0.064 grams (approximate)
SMB 0.093 grams (approximate)
Ordering Information (Note 3)
Part Number | Case | Packaging |

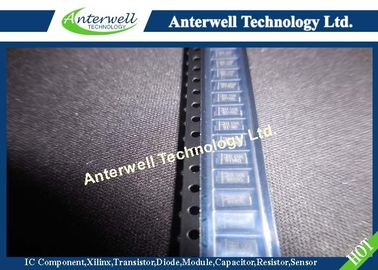

B1x-13-F | SMA | 5000/Tape & Reel |
B1xB-13-F | SMB | 3000/Tape & Reel |
*x = Device type, e.g. B180-13-F (SMA package); B1100B-13-F (SMB package).
Notes: 1. EU Directive 2002/95/EC (RoHS). All applicable RoHS exemptions applied, see EU Directive 2002/95/EC Annex Notes.
2. Product manufactured with Data Code 0924 (week 24, 2009) and newer are built with Green Molding Compound.
3. For packaging details, go to our website at http://www.diodes.com.
