50 To 1000 Volts Rectifier Diode Current 10 Amperes 10a Standard Diode 10a10

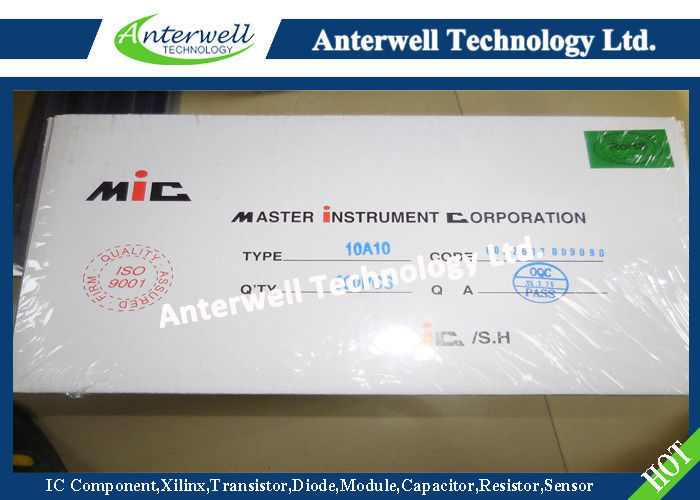

: Large Image : 50 To 1000 Volts Rectifier Diode Current 10 Amperes 10a Standard Diode 10a10

Product Details:

Place of Origin:	Original
Brand Name:	BILIN
Certification:	Original Factory Pack
Model Number:	10A10

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiation
Packaging Details:	please contact me for details
Delivery Time:	1 Day
Payment Terms:	T/T, Western Union,PayPal
Supply Ability:	5200PCS

Contact Now

Detailed Product Description

Maximum Average Forward Rectified Current:	10 A	Peak Forward Surge Current, 8.3 Ms Single Half Sine-wave:	400 A
Maximum Instantaneous Forward Voltage At 10.0A:	1.0 V	Maximum DC Reverse Current Ta=25 C:	10.0 µA
Typical Junction Capacitance (Note 1):	100 PF
High Light:	diode rectifier circuit , bridge rectifier circuit

10A005 _THRU 10A10

50 To 1000 Volts Rectifier Diode Current 10 Amperes 10a Standard Diode 10a10

10.0 AMP SILICON RECTIFIERS

FEATURES

* Low forward voltage drop

* High current capability

* High reliability

* High surge current capability

MECHANICAL DATA

* Case: Molded plastic

* Epoxy: UL 94V-0 rate flame retardant

* Lead: Axial leads, solderable per MIL-STD-202, method 208 guranteed

* Polarity: Color band denotes cathode end

* Mounting position: Any Weight: 1.65 grams

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Rating 25 C ambient temperature uniess otherwies specified.

Single phase half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%.

TYPE NUMBER	10A10
Maximum Average Forward Rectified Current .375"(9.5mm) Lead Length at Ta=60 C	10 A
Peak Forward Surge Current, 8.3 ms single half sine-wave superimposed on rated load (JEDEC method)	400 A
Maximum Instantaneous Forward Voltage at 10.0A	1.0 V
Maximum DC Reverse Current Ta=25 C at Rated DC Blocking Voltage Ta=100 C	10 µA 400 µA
Typical Junction Capacitance (Note 1)	100 pF
Typical Thermal Resistance RθJA (Note 2)	10 C/W
