1N4733A Low voltage regulator diodes Rectifier Diode in hermetically sealed SOD66 DO-41 packages

China 1N4733A Low voltage regulator diodes Rectifier Diode in hermetically sealed SOD66 DO-41 packages supplier

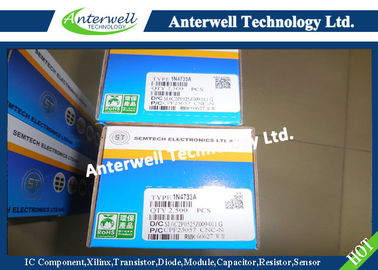

Large Image :  1N4733A Low voltage regulator diodes Rectifier Diode in hermetically sealed SOD66 DO-41 packages

Product Details:

Place of Origin: Original
Brand Name: PHILIPS
Certification: Original
Model Number: 1N4733A

Payment & Shipping Terms:

Minimum Order Quantity: 5 pieces
Price: 0.1USD
Packaging Details: contact us for more details
Delivery Time: 1 day
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 10000pieces/day
Contact Now
Detailed Product Description
• Total Power Dissipation: Max. 1000 MW Tolerance Series: ±5%
Working Voltage Range: Nom. 3.3 To 24 V. APPLICATIONS: Low Voltage Stabilizers.
TYPE: 1N4733A FEATURES: Low Profile Package
High Light:

diode rectifier circuit

,

bridge rectifier circuit

Voltage regulator diodes

                             1N4728A to 1N4749A

FEATURES

• Total power dissipation: max. 1000 mW

1N4733A Low voltage regulator diodes Rectifier Diode in hermetically sealed SOD66 DO-41 packages



 • Tolerance series: ±5%

• Working voltage range: nom. 3.3 to 24 V.



APPLICATIONS

• Low voltage stabilizers.







DESCRIPTION

Low voltage regulator diodes in hermetically sealed SOD66 (DO-41) packages. The series consists of 22 types with nominal working voltages from 3.3 to 24 V.





LIMITING VALUES

In accordance with the Absolute Maximum Rating System (IEC 134).



SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
IF continuous forward current      − 500 mA
IZM working current

   see Table

    “Per type”


IZSM non-repetitive peak reverse current

   see Table

   “Per type”


Ptot t total power dissipation Tamb = 50 °C    − 1000 mW
Tstg storage temperature   −65 +200 0 °C
Tj junction temperature   −65 +200 0 °C



ELECTRICAL CHARACTERISTICS

Total series

Tj = 25 °C; unless otherwise specified



SYMBOL PARAMETER CONDITIONS MIN. MAX. AX. UNIT
VF forward voltage IF = 200 mA; see Fig.3 1.2 V
