5 V, 0.1 F CMOS RS-232 Drivers / Receivers 200 kB/s Transmission Rate Single 5V Power Supply

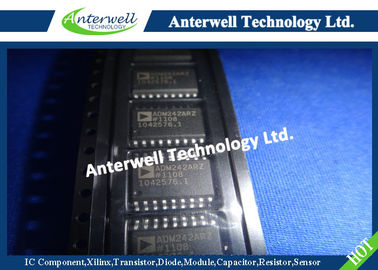

: Large Image : 5 V, 0.1 F CMOS RS-232 Drivers / Receivers 200 kB/s Transmission Rate Single 5V Power Supply

Product Details:

Place of Origin:	Original
Brand Name:	Analog Devices
Certification:	Original Factory Pack
Model Number:	ADM242ARZ

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	Negotiation
Packaging Details:	please contact me for details
Delivery Time:	1 Day
Payment Terms:	T/T, Western Union,PayPal
Supply Ability:	290PCS

Contact Now

Detailed Product Description

VCC:	6 V	V+:	(VCC – 0.3 V) To +13 V
V-:	+0.3 V To –13 V	Power Dissipation N-16:	400 MW
θJA, Thermal Impedance:	80°C/W
High Light:	integrated circuit ic , integrated circuit components

High-Speed, 5 V, 0.1 F CMOS RS-232 Drivers/Receivers

ADM222/ADM232A/ADM242

5 V, 0.1 F CMOS RS-232 Drivers / Receivers 200 kB/s Transmission Rate Single 5V Power Supply FEATURES

200 kB/s Transmission Rate

Small (0.1 F) Charge Pump Capacitors

Single 5 V Power Supply

Meets All EIA-232-E and V.28 Specifications

Two Drivers and Two Receivers

On-Board DC-DC Converters

9 V Output Swing with 5 V Supply

30 V Receiver Input Levels

Pin Compatible with MAX222/MAX232A/MAX242

APPLICATIONS

Computers

Peripherals

Modems

Printers Instruments

GENERAL DESCRIPTION

The ADM222, ADM232A, ADM242 are a family of high-speed RS-232 line drivers/receivers offering transmission rates up to 200 kB/s. Operating from a single 5 V power supply, a highly efficient on-chip charge pump using small (0.1 µF) external capacitors allows RS-232 bipolar levels to be developed. Two RS-232 drivers and two RS-232 receivers are provided on each device. The devices are fabricated on BiCMOS, an advanced mixed technology process that combines low power CMOS with highspeed bipolar circuitry. This allows for transmission rates up to 200 kB/s, yet minimizes the quiescent power supply current to under 5 mA.

Test Circuits

5 V, 0.1 F CMOS RS-232 Drivers / Receivers 200 kB/s Transmission Rate Single 5V Power Supply
