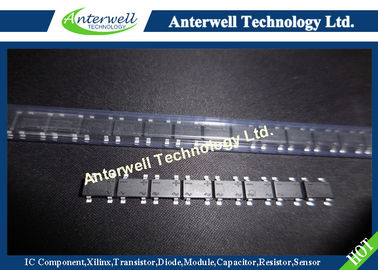

Miniature Glass Passivated Single Phase Surface Mount Bridge Rectifier Df10s

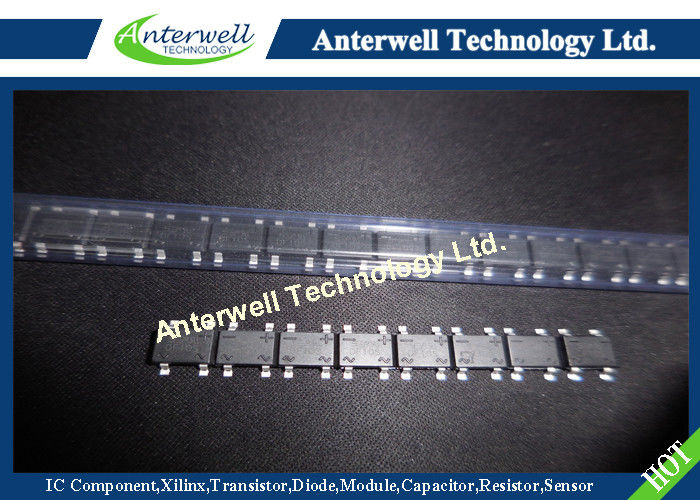

: Large Image : Miniature Glass Passivated Single Phase Surface Mount Bridge Rectifier Df10s

Product Details:

Place of Origin:	Original
Brand Name:	VISHAY
Certification:	Original Factory Pack
Model Number:	DF10S

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiation
Packaging Details:	please contact me for details
Delivery Time:	1 Day
Payment Terms:	T/T, Western Union,PayPal
Supply Ability:	5200PCS

Contact Now

Detailed Product Description

Maximum Repetitive Peak Reverse Voltage:	1000 Volts	Maximum RMS Voltage:	700 Volts
Maximum DC Blocking Voltage:	1000 Volts	Maximum Average Forward Output Rectified Current At TA=40°C (NOTE 2):	1.0 Amp
Peak Forward Surge Current Single Half Sine-wave:	50.0 Amps
High Light:	diode rectifier circuit , bridge rectifier circuit

FEATURES

♦ Plastic package has Underwriters Laboratory Flammability Classification 94V-0

♦ This series is UL recognized under Component Index, file number E54214

♦ Glass passivated chip junctions

♦ High surge overload rating-50 amperes peak

♦ Ideal for printed circuit boards

♦ High temperature soldering guaranteed: 260°C/10 seconds at 5 lbs. (2.3kg) tension

MECHANICAL DATA

Case: Molded plastic body over passivated junctions

Terminals: Plated leads solderable per MIL-STD-750, Method 2026

Polarity: Polarity symbols marked on body Mounting

Position: Any

Weight: 0.04 ounce, 1.0 gram

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Miniature Glass Passivated Single Phase Surface Mount Bridge Rectifier Df10s

RATINGS AND CHARACTERISTICS CURVES DF005S THRU DF10S
