Product Details:
Payment & Shipping Terms:
|
Internally Trimmed Offset Voltage:: | 5 MV Max | Low Input Bias Current:: | 50 PA |
---|---|---|---|
Wide Gain Bandwidth:: | 4 MHz | N High Slew Rate:: | 13 V/µs |
N Low Supply Current:: | 7.2 MA | ||
High Light: | diode rectifier circuit,bridge rectifier circuit |

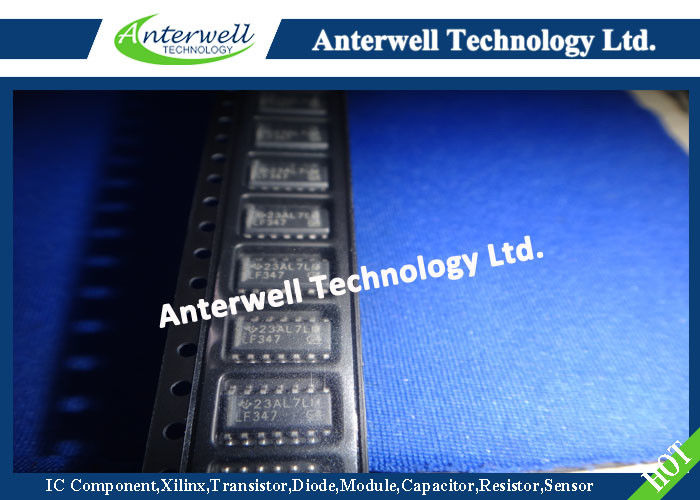

LF147/LF347
Wide Bandwidth Quad JFET Input Operational Amplifiers
Features
► Internally trimmed offset voltage: 5 mV max
► Low input bias current: 50 pA
► Low input noise current:
► Wide gain bandwidth: 4 MHz
► High slew rate: 13 V/µs
► Low supply current: 7.2 mA
► High input impedance: 1012Ω
► Low total harmonic distortion AV=10,: <0.02%
RL=10k, VO=20 Vp-p, BW=20 Hz−20 kHz
► Low 1/f noise corner: 50 Hz
► Fast settling time to 0.01%: 2 µs
General Description
The LF147 is a low cost, high speed quad JFET input operational amplifier with an internally trimmed input offset voltage (BI-FET II™ technology). The device requires a low supply current and yet maintains a large gain bandwidth product and a fast slew rate. In addition, well matched high voltage JFET input devices provide very low input bias and offset currents. The LF147 is pin compatible with the standard LM148. This feature allows designers to immediately upgrade the overall performance of existing LF148 and LM124 designs.e drift.
The LF147 may be used in applications such as high speed integrators, fast D/A converters, sample-and-hold circuits and many other circuits requiring low input offset voltage, low input bias current, high input impedance, high slew rate and wide bandwidth. The device has low noise and offset voltage drift.
