Usb To Serial Port Controller Tusb3410 Integrated Circuit Components

China Usb To Serial Port Controller Tusb3410 Integrated Circuit Components supplier

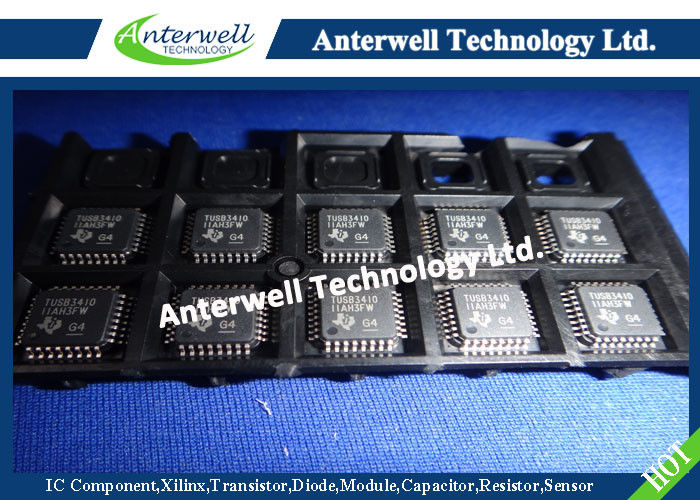

Large Image :  Usb To Serial Port Controller Tusb3410 Integrated Circuit Components

Product Details:

Place of Origin: original factory
Brand Name: Anterwell
Certification: new & original
Model Number: TUSB3410

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiate
Packaging Details: Please contact me for details
Delivery Time: 1 day
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 3200pcs
Contact Now
Detailed Product Description
Supply Voltage: 3-3.6V Operating Temperature: 0-70°C
High Light:

integrated circuit ic

,

integrated circuit components



TUSB3410  USB TO SERIAL PORT CONTROLLER



1.Controller Description

The TUSB3410 provides bridging between a USB port and an enhanced UART serial port. The TUSB3410 contains all the necessary logic to communicate with the host computer using the USB bus. It contains an 8052 microcontroller unit (MCU) with 16K bytes of RAM that can be loaded from the host or from external on-board memory via an I2C bus. It also contains 10K bytes of ROM that allow the MCU to configure the USB port at boot time. The ROM code also contains an I2C boot loader. All the device functions such as the USB command decoding, UART setup, and error reporting are managed by the internal MCU firmware under the auspices of the PC host.

The TUSB3410 can be used to build an interface between a legacy serial peripheral device and a PC with USB ports, such as a legacy-free PC. Once configured, data flows from the host to the TUSB3410 via USB OUT commands and then out from the TUSB3410 on the SOUT line. Conversely, data flows into the TUSB3410 on the SIN line and then into the host via USB IN commands.

Usb To Serial Port Controller Tusb3410 Integrated Circuit Components

                                                                Figure 1–1. Data Flow





Usb To Serial Port Controller Tusb3410 Integrated Circuit Components

                      Figure 1–2. USB-to-Serial (Single Channel) Controller Block Diagram





2. Main Features



2.1 USB Features

• Fully compliant with USB 2.0 full speed Specifications

• Supports 12-Mbps USB data rate (full speed)

• Supports USB suspend, resume, and remote wakeup operations

• Supports two power source modes:

   – Bus-powered mode

   – Self-powered mode

• Can support a total of 3-input and 3-output (interrupt, bulk) endpoints



2.2 General Features

• Integrated 8052 microcontroller with

   – 256 × 8 RAM for internal data

   – 10K × 8 ROM (with USB and I2C boot loader)

   – 16K × 8 RAM for code space loadable from host or I2C port

   – 2K × 8 Shared RAM used for data buffers and endpoint descriptor blocks (EDB)

   – Four GPIO pins from 8052 port 3

   – Master I2C controller for EEPROM device access

   – MCU operates at 24 MHz providing 2 MIPS operation

   – 128-ms Watchdog Timer

• Built-in two-channel DMA controller for USB/UART bulk I/O

• Operates from a 12-MHz crystal

• Supports USB suspend and resume

• Supports remote wake-up

• Available in 32-pin LQFP

• 3.3-V operation with 1.8-V core operating voltage provided by on-chip 1.8-V voltage regulator



2.3 Enhanced UART Features

• Software/hardware flow control:

   – Programmable Xon/Xoff characters

   – Programmable Auto-RTS/DTR and Auto-CTS/DSR

• Automatic RS485-bus transceiver control, with and without echo

• Selectable IrDA mode for up to 115.2 kbps transfer

• Software selectable baud rate from 50 to 921.6 k baud

• Programmable serial-interface characteristics

   – 5-, 6-, 7-, or 8-Bit characters

   – Even, odd, or no parity-bit generation and detection

   – 1-, 1.5-, or 2-Stop bit generation

• Line break generation and detection 2–2

• Internal test and loop-back capabilities

• Modem-control functions (CTS, RTS, DSR, DTR, RI, and DCD)

• Internal diagnostics capability

   – Loopback control for communications link-fault isolation

   – Break, parity, overrun, framing-error simulation



2.4 Pinout Information

Usb To Serial Port Controller Tusb3410 Integrated Circuit Components



Table 2–1. Terminal Functions

        TERMINAL   I/O                          DESCRIPTION
  NAME   NO.
  CLKOUT   22   O  Clock output (controlled by CLKOUTEN and CLKSLCT in MODECNFG  register (see Section 5.1.5 and Note 1)
  CTS   13    I  UART: Clear to send (see Note 4)
  DCD   15     I  UART: Data carrier detect (see Note 4)
  DM    7   I/O  Upstream USB port differential data minus
  DP    6   I/O  Upstream USB port differential data plus
  DSR   14    I  UART: Data set ready (see Note 4)
  DTR   21   O  UART: Data terminal ready (see Note 1)
  GND  8, 18, 28   GND  Digital ground
  P3.0   32    I/O  Port-3.0 (see Notes 3, 4, 5, and 8)
  P3.1   31    I/O  Port-3.1 (see Notes 3, 4, 5, and 8)
  P3.3   30    I/O  Port-3.3 (see Notes 3, 4, 5, and 8)
  P3.4   29    I/O  Port-3.4 (see Notes 3, 4, 5, and 8)
  PUR    5    O  Pull-up resistor connection (see Note 2)
  RESET    9     I  Controller master reset signal (see Note 4)
  RI/CP   16     I  UART: Ring indicator (see Note 4)
  RTS   20    O  UART: Request to send (see Note 1)
  SCL   11    O  Master I2C controller: clock signal (see Note 1)
  SDA   10   I/O  Master I2C controller: data signal (see Notes 1 and 5)
 SIN/IR_SIN   17     I  UART: Serial input data / IR Serial data input (see Note 6)
SOUT/IR_SOUT   19    O  UART: Serial output data / IR Serial data output (see Note 7)
  SUSPEND    2    O  Suspend condition signal (see Note 3)
  TEST0   23     I  Test input (for factory test only) (see Note 5)
  TEST1   24     I  Test input (for factory test only) (see Note 5)
  VCC   3, 25  PWR  3.3 V
  VDD18    4  PWR  1.8-V Supply. An internal voltage regulator generates this supply voltage  when terminal VREGEN is asserted. When VREGEN is deasserted, 1.8 V  must be supplied externally.
  VREGEN     1     I  This active-low terminal is used to enable the 3.3-V to 1.8-V voltage  regulator in the core.
  WAKEUP   12     I  Remote wake-up request pin. When low, wakes up system (see Note 5)
  X1/CLKI   27     I  12-MHz crystal input or clock input
  X2   26    O  12-MHz crystal output

NOTES:

1. 3-state CMOS output (±4-mA drive/sink)

2. 3-state CMOS output (±8-mA drive/sink)

3. 3-state CMOS output (±12-mA drive/sink)

4. TTL-compatible, hysteresis input

5. TTL-compatible, hysteresis input, with internal 100-µA active pullup

6. TTL-compatible input without hysteresis, with internal 100-µA active pullup

7. Normal or IR mode: 3-state CMOS output (±4-mA drive/sink)

8. The MCU treats the outputs as open drain types in that the output can be driven low continuously, but a high output is driven for two clock cycles and then the output is tristated.
