Product Details:
Payment & Shipping Terms:
|
Reverse Current: | 30 MA | Forward Current: | 10 MA |
---|---|---|---|
Operating Temperature Range (Note 3): | 0˚C To 70˚C | Storage Temperature: | −55˚C To + 150˚C |
Soldering Information: | 300˚C | ||
High Light: | power mosfet ic,silicon power transistors |

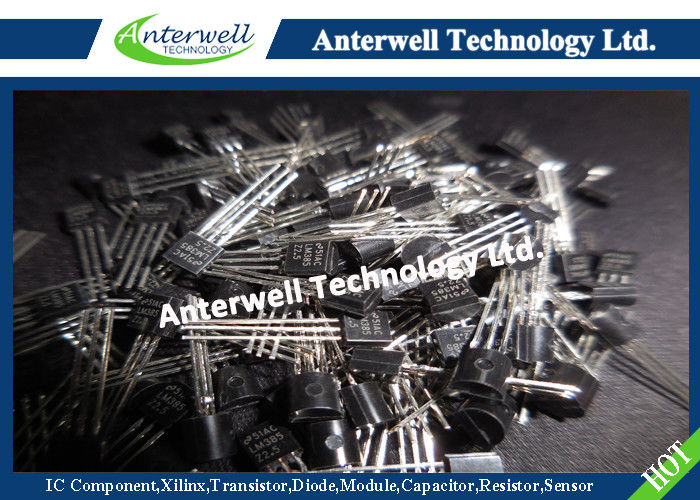

LM185-2.5/LM285-2.5/LM385-2.5
Micropower Voltage Reference Diode
General Description
The LM285/LM385 series are micropower two–terminal bandgap voltage regulator diodes. Designed to operate over a wide current range of 10 µA to20 mA, thesedevices feature exceptionally low dynamic impedance, low
noise and stable operation over time and temperature. Tight voltage tolerances are achieved by on–chip trimming. The large dynamic operating range enables these devices to be used in applications with widely varying supplies with excellent regulation. Extremely low operating current make these devices ideal for micropower circuitry like portable instrumentation,
regulators and other analog circuitry where extended battery life is required.
Features
• Operating Current from 10 µA to 20 mA
• 1.0%, 1.5%, 2.0% and 3.0% Initial Tolerance Grades
• Low Temperature Coefficient
• 1.0 Ω Dynamic Impedance
• Surface Mount Package Available
LM285 LM385, B
