Product Details:
Payment & Shipping Terms:
|
| Supply Voltage: | ±22V | Power Dissipation (Note 2): | 500 MW |
|---|---|---|---|
| Differential Input Voltage: | ±30V | Input Voltage (Note 3): | ±15V |
| Operating Temperature Range: | −55˚C To +125˚C | ||
| High Light: | power mosfet ic,silicon power transistors |
||

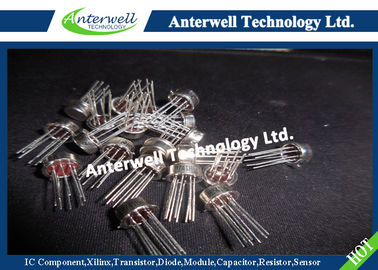

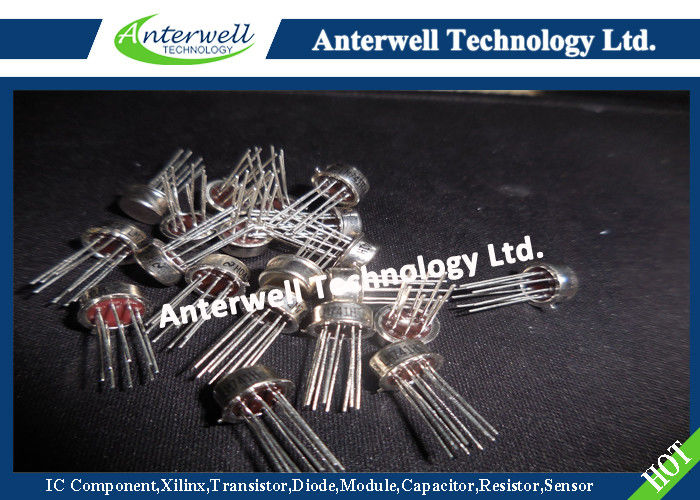

Operational Amplifier Power Mosfet Transistor / general purpose mosfet LM741H , 500 mW
General Description
The LM741 series are general purpose operational amplifiers which feature improved performance over industry standards like the LM709. They are direct, plug-in replacements for the 709C, LM201, MC1439 and 748 in most applications. The amplifiers offer many features which make their application nearly foolproof: overload protection on the input and output, no latch-up when the common mode range is exceeded, as well as freedom from oscillations. The LM741C/LM741E are identical to the LM741/LM741A except that the LM741C/LM741E have their performance guaranteed over a 0˚C to +70˚C temperature range, instead of −55˚C to +125˚C.
Schematic Diagram
Connection Diagram
