DMOS full bridge rectifier , DRIVER bridge type rectifier diode L6203

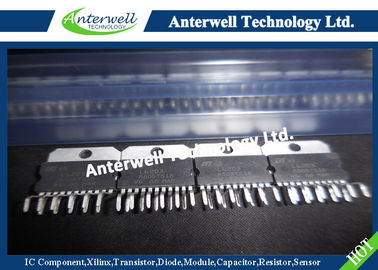

: Large Image : DMOS full bridge rectifier , DRIVER bridge type rectifier diode L6203

Product Details:

Place of Origin:	Original
Brand Name:	STMICROELECTRONICS
Certification:	Original Factory Pack
Model Number:	L6203

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	Negotiation
Packaging Details:	please contact me for details
Delivery Time:	1 Day
Payment Terms:	T/T, Western Union,PayPal
Supply Ability:	290PCS

Contact Now

Detailed Product Description

SUPPLY VOLTAGE:	UP TO 48V	PEAK CURRENT:	2A Max. For L6201
TOTAL RMS CURRENT:	L6201: 1A; L6202: 1.5A; L6203/L6201PS: 4A	RDS (ON):	0.3 Ω
OPERATING FREQUENCY:	UP TO 100 KHz
High Light:	diode rectifier circuit , signal schottky diode

L6201 L6202 - L6203

DMOS FULL BRIDGE DRIVER

►SUPPLY VOLTAGE UP TO 48V

►5A MAX PEAK CURRENT (2A max. for L6201)

►TOTAL RMS CURRENT UP TO L6201: 1A; L6202: 1.5A; ►L6203/L6201PS: 4A

►R_{DS (ON)} 0.3 Ω (typical value at 25 °C) CROSS ►CONDUCTION PROTECTION

►TTL COMPATIBLE DRIVE

►OPERATING FREQUENCY UP TO 100 KHz

►THERMAL SHUTDOWN

►INTERNAL LOGIC SUPPLY

►HIGH EFFICIENCY

DESCRIPTION

The I.C. is a full bridge driver for motor control applications realized in Multipower-BCD technology which combines isolated DMOS power transistors with CMOS and Bipolar circuits on the same chip. By using mixed technology it has been possible to optimize the logic circuitry and the power stage to achieve the best possible performance. The DMOS output transistors can operate at supply voltages up to 42V and efficiently at high switching speeds. All the logic inputs are TTL, CMOS and µC compatible. Each channel (half-bridge) of the device is controlled by a separate logic input, while a common enable controls both channels. The I.C. is mounted in three different packages.

BLOCK DIAGRAM
