Miniature Glass Passivated Single Phase Surface Mount Bridge Rectifiers DF06S-E3-77

China Miniature Glass Passivated Single Phase Surface Mount Bridge Rectifiers DF06S-E3-77 supplier

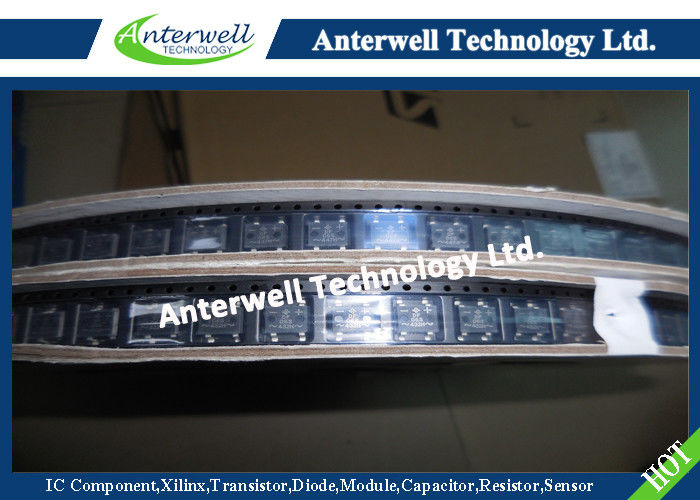

Large Image :  Miniature Glass Passivated Single Phase Surface Mount Bridge Rectifiers DF06S-E3-77

Product Details:

Place of Origin: Philippines
Brand Name: VISHAY
Certification: Original Factory Pack
Model Number: DF06S-E3-77

Payment & Shipping Terms:

Minimum Order Quantity: 20
Price: Negotiate
Packaging Details: please contact me for details
Delivery Time: 1
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 20000
Contact Now
Detailed Product Description
F(AV: 1 A VRRM: 50 V To 1000 V
IFSM: 50 A I R: 5 µA
VF: 1.1 V TJ Max: 150 °C
High Light:

diode rectifier circuit

,

bridge rectifier circuit

Miniature Glass Passivated Single-Phase

Surface Mount Bridge Rectifiers


Miniature Glass Passivated Single Phase Surface Mount Bridge Rectifiers DF06S-E3-77FEATURES
• UL recognition, file number E54214
• Ideal for automated placement
• High surge current capability
• Meets MSL level 1, per J-STD-020, LF maximum peak of 250 °C
• Solder dip 260 °C, 40 s
• Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC

TYPICAL APPLICATIONS
  General purpose use in ac-to-dc bridge full wave rectification for SMPS, lighting ballaster, adapter, battery charger, home appliances, office equipment, and telecommunication applications.



MECHANICAL DATA

Case: DFS Epoxy meets UL 94V-0 flammability rating

Terminals: Matte tin plated leads, solderable per J-STD-002 and JESD22-B102 E3 suffix for consumer grade, meets JESD 201 class 1A whisker test

Polarity: As marked on body









RATINGS AND CHARACTERISTICS CURVES

Miniature Glass Passivated Single Phase Surface Mount Bridge Rectifiers DF06S-E3-77
