BD681 NPN Darlington Power Transistors Medium Power Switching

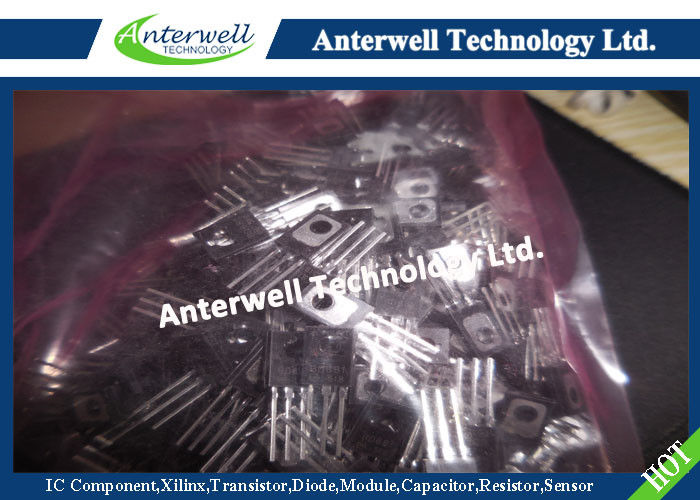

: Large Image : BD681 NPN Darlington Power Transistors Medium Power Switching

Product Details:

Place of Origin:	Malaysia
Brand Name:	ONSEMI
Certification:	Original Factory Pack
Model Number:	BD681

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	Negotiation
Packaging Details:	please contact me for details
Delivery Time:	1 Day
Payment Terms:	T/T, Western Union,PayPal
Supply Ability:	1200PCS

Contact Now

Detailed Product Description

Current Gain:	HFE = 750 (Min) @ IC = 1.5 And 2.0 Adc	Feature:	Monolithic Construction
PN:	BD675, 675A, 677, 677A, 679, 679A, 681 Are Complementary With BD676, 676A, 678, 678A, 680, 680A, 682 ÎÎÎÎÎÎÎÎÎ	APPLICATIONS:	General Regulation Functions
SMD Packages:	TO–225AA TYPE
High Light:	power mosfet ic , multi emitter transistor

BD681 NPN Darlington Power Transistors Medium Power Switching

BD681 NPN Darlington Power Transistors Medium Power Switching ■ SGS-THOMSON PREFERRED SALESTYPES

■ COMPLEMENTARY PNP - NPN DEVICES

■ MONOLITHIC DARLINGTON CONFIGURATION

■ INTEGRATED ANTIPARALLEL COLLECTOR-EMITTER DIODE

APPLICATION

■ LINEAR AND SWITCHING INDUSTRIAL EQUIPMENT

BD681 NPN Darlington Power Transistors Medium Power Switching

DESCRIPTION

The BD677, BD677A, BD679, BD679A and BD681 are silicon epitaxial-base NPN power transistors in monolithic Darlington configuration mounted in Jedec SOT-32 plastic package. They are intended for use in medium power linar and switching applications The complementary PNP types are BD678, BD678A, BD680, BD680A and BD682 respectively.

Safe Operating Areas

BD681 NPN Darlington Power Transistors Medium Power Switching
