FSCQ1565RT Integrated Circuit Chip Green Mode Fairchild Power Switch (FPS TM)

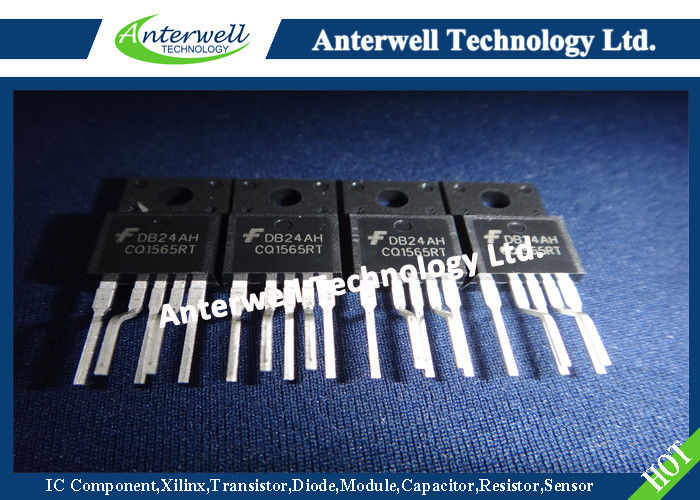

: Large Image : FSCQ1565RT Integrated Circuit Chip Green Mode Fairchild Power Switch (FPS TM)

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	FSCQ1565RT

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	10000pcs

Contact Now

Detailed Product Description

TJ:

+150°C

TA:

-25 To +85°C

TSTG:

-55 To +150°C

PD:

75W

Highlight:

electronics ic chip

integrated circuit ic

FSCQ1565RT
Green Mode Fairchild Power Switch (FPS TM)

Features

■ Optimized for Quasi-Resonant Converter (QRC)
■ Advanced Burst-Mode Operation for under 1W Standby Power Consumption
■ Pulse-by-Pulse Current Limit
■ Over Load Protection (OLP) – Auto Restart
■ Over Voltage Protection (OVP) – Auto Restart
■ Abnormal Over Current Protection (AOCP) – Latch
■ Internal Thermal Shutdown (TSD) – Latch
■ Under Voltage Lock Out (UVLO) with Hysteresis
■ Low Startup Current (typical: 25µA)
■ Internal High Voltage SenseFET
■ Built-in Soft Start (20ms)

■ Extended Quasi-Resonant Switching

Applications

■ CTV ■ Audio Amplifier

Absolute Maximum Ratings (Continued)

(TA = 25°C, unless otherwise specified)

Total Power Dissipation(Tc = 25°C with Infinite Heat Sink)	PD	75 W
Operating Junction Temperature	TJ	+150°C
Operating Ambient Temperature	TA	-25 to +85°C
Storage Temperature Range	TSTG	-55 to +150°C
ESD Capability, HBM Model (All pins except Vfb)	-	2.0(GND – Vfb = 1.7kV)kV
ESD Capability, Machine Model (All pins except Vfb)	-	300(GND – Vfb = 170V)V

Notes:

4. Repetitive rating: pulse width limited by maximum junction temperature.
5. L = 15mH, starting Tj = 25°C, These parameters, although guaranteed at the design, are not tested in mass production.
