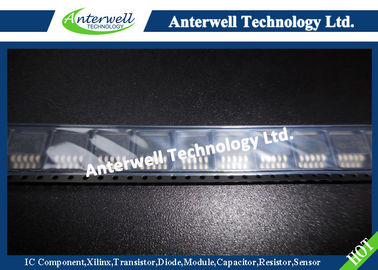

popular Integrated Circuit Chip TLE4270-2G 5-V Low Drop Fixed Voltage Regulator

TLE4270-2G 5-V Low Drop Fixed Voltage Regulator

Features

• Output voltage tolerance ≤ ±2%
• 650 mA output current capability
• Low-drop voltage
• Reset functionality
• Adjustable reset time
• Suitable for use in automotive electronics
• Integrated overtemperature protection
• Reverse polarity protection
• Input voltage up to 42 V
• Overvoltage protection up to 65 V (≤ 400 ms)
• Short-circuit proof
• Wide temperature range
• ESD protection: ±2kV HBM1)
• Green Product (RoHS compliant)
• AEC Qualified

Functional Description

This device is a 5-V low drop fixed-voltage regulator. The maximum input voltage is 42 V (65 V, ≤ 400 ms). Up to an input voltage of 26 V and for an output current up to 650 mA it regulates the output voltage within a 2% accuracy. The short circuit protection limits the output current of more than 650 mA. The device incorporates overvoltage protection and a temperature protection which turns off the device at high temperatures.

Absolute Maximum Ratings
