Product Details:
Payment & Shipping Terms:
|
| VDD POWER: | 10 V To 44 V, +/- 5 V To +/- 22 V | Package: | TO-99 |
|---|---|---|---|
| Max Working Temperature: | + 125 °C | Min Working Temertature: | - 55 °C |
| Series: | LM741 | Factory Packing Quantity: | 500 |
| High Light: | power mosfet ic,multi emitter transistor |
||

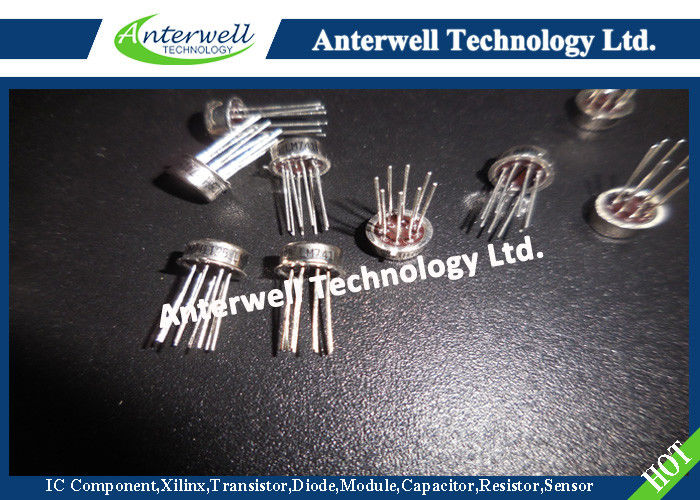

LM741H Power Mosfet Tansistor Operational Amplifier
General Description
The LM741 series are general purpose operational amplifiers which feature improved performance over industry standards like the LM709. They are direct, plug-in replacements for the 709C, LM201, MC1439 and 748 in most applications. The amplifiers offer many features which make their application nearly foolproof: overload protection on the input and output, no latch-up when the common mode range is exceeded, as well as freedom from oscillations
The LM741C/LM741E are identical to the LM741/LM741A except that the LM741C/LM741E have their performance guaranteed over a 0˚C to +70˚C temperature range, instead of −55˚C to +125˚C.
Absolute Maximum Ratings (Note 1)
If Military/Aerospace specified devices are required, please contact the National Semiconductor Sales Office/ Distributors for availability and specifications.
Electrical Characteristics
| Parameter | Conditions | LM741A/LM741E | LM741 | LM741C | Units | ||||||
| MIN | Typ | Max | MIN | Typ | Max | MIN | Typ | Max | |||
| Input Offset Voltage |
TA = 25˚C RS ≤ 10 kΩ RS ≤ 50Ω |
0.8 | 3.0 | 1.0 | 5.0 | 2.0 | 6.0 |
mV mV |
|||
|
TAMIN ≤ TA ≤ TAMAX RS ≤ 50Ω RS ≤ 10 kΩ |
4.0 | 6.0 | 7.5 |
mV mV |
|||||||
|
Average Input Offset Voltage Drift |
15 | µV/˚C | |||||||||
|
Input Offset Voltage Adjustment Range |
TA = 25˚C, VS = ±20V | ±10 | ±15 | ±15 | mV | ||||||
| Input Offset Current | TA = 25˚C | 3.0 | 30 | 20 | 200 | 20 | 200 | nA | |||
| TAMIN ≤ TA ≤ TAMAX | 70 | 85 | 500 | 300 | nA | ||||||
|
Average Input Offset Current Drift |
0.5 | nA/˚C | |||||||||
| Input Bias Current | TA = 25˚C | 30 | 80 | 80 | 500 | 80 | 500 | nA | |||
| TAMIN ≤ TA ≤ TAMAX | 0.210 | 1.5 | 0.8 | µA | |||||||
| Input Resistance | TA = 25˚C, VS = ±20V | 1.0 | 6.0 | 0.3 | 2.0 | 0.3 | 2.0 | MΩ | |||
|
TAMIN ≤ TA ≤ TAMAX, VS = ±20V |
0.5 | MΩ | |||||||||
| Input Voltage Range | TA = 25˚C | ±12 | ±13 | V | |||||||
| TAMIN ≤ TA ≤ TAMAX | ±12 | ±13 | V | ||||||||
