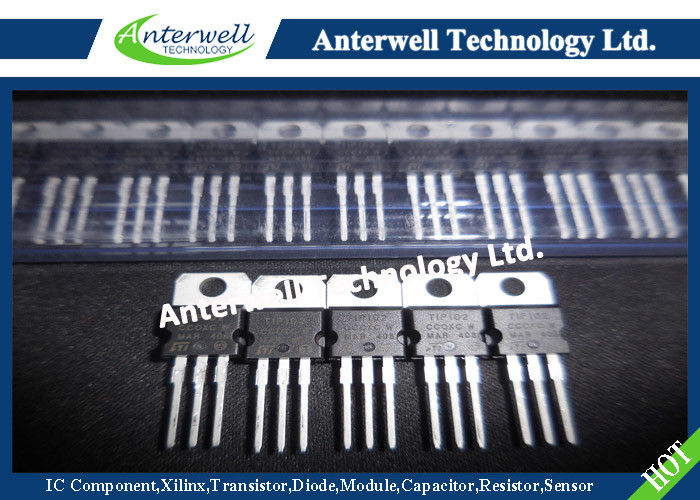

TIP102
TIP107
COMPLEMENTARY SILICON POWER DARLINGTON TRANSISTORS
■ STMicroelectronics PREFERRED SALESTYPES
■ COMPLEMENTARY PNP - NPN DEVICES
■ INTEGRATED ANTIPARALLEL COLLECTOR-EMITTER DIODE
APPLICATIONS
■ LINEAR AND SWITCHING INDUSTRIAL EQUIPMENT
■ AUDIO POWER AMPLIFIER
■ GENERAL POWER SWITCHING
■ DC-AC CONVERTER
■ EASY DRIVER FOR LOW VOLTAGE DC MOTOR
DESCRIPTION
The TIP102 is a silicon Epitaxial-Base NPN power transistor in monolithic Darlington configuration mounted in TO-220 plastic package. It is intented for use in power linear and switching applications.
The complementary PNP type is TIP107.
ABSOLUTE MAXIMUM RATINGS
| Symbol | Parameter | Value | Unit | |
| TIP102 | ||||
| NPN | TIP107 | |||
| PNP | ||||
| VCBO | Collector-Base Voltage (IE = 0) | 100 | V | |
| VCEO | Collector-Emitter Voltage (IB = 0) | 100 | V | |
| VEBO | Emitter-Base Voltage (IC = 0) | 5 | V | |
| IC | Collector Current | 8 | A | |
| ICM | Collector Peak Current | 15 | A | |
| IB | Base Current | 1 | A | |
| Ptot |
Total Dissipation at Tcase ≤ 25 ℃ Tamb ≤ 25 ℃ |
80 2 |
W | |
| Tstg | Storage Temperature | -65 to 150 | ℃ | |
| Tj | Max. Operating Junction Temperature | 150 | ℃ | |
* For PNP types voltage and current values are negative.
