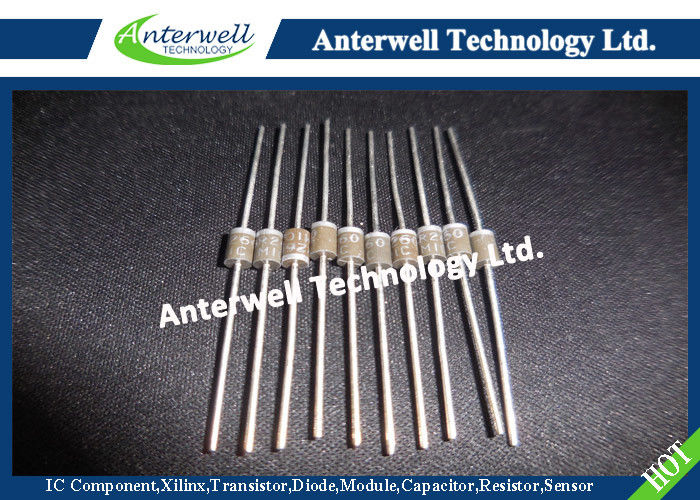

SR260 Rectifier Diode zener diode 2.0A SCHOTTKY BARRIER RECTIFIER

: Large Image : SR260 Rectifier Diode zener diode 2.0A SCHOTTKY BARRIER RECTIFIER

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	SR260

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	30000pcs

Contact Now

Detailed Product Description

Peak Repetitive Reverse Voltage:	60 V	Working Peak Reverse Voltage:	60 V
DC Blocking Voltage:	60 V	RMS Reverse Voltage:	42 V
Typical Junction Capacitance:	140 PF	Typical Thermal Resistance:	35 °C/W
Highlight:	diode rectifier circuit , bridge rectifier circuit

SR220 – SR2100

2.0A SCHOTTKY BARRIER DIODE

Features

• Schottky Barrier Chip

• Guard Ring Die Construction for Transient Protection

• High Current Capability

• Low Power Loss, High Efficiency

• High Surge Current Capability

• For Use in Low Voltage, High Frequency Inverters, Free Wheeling, and Polarity Protection Applications

Mechanical Data

• Case: DO-15, Molded Plastic

• Terminals: Plated Leads Solderable per MIL-STD-202, Method 208

• Polarity: Cathode Band

• Weight: 0.40 grams (approx.)

• Mounting Position: Any ! Marking: Type Number

• Lead Free: For RoHS / Lead Free Version, Add “-LF” Suffix to Part Number

SR260 Rectifier Diode zener diode 2.0A SCHOTTKY BARRIER RECTIFIER

Maximum Ratings and Electrical Characteristics @T_A=25°C unless otherwise specified

Single Phase, half wave, 60Hz, resistive or inductive load.

For capacitive load, derate current by 20%.

Characteristic	Symbol	SR220	SR230	SR240	SR250	SR260	SR280	SR2100	Unit
Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage	V_RRM V_RWM V_R	20	30	40	50	60	80	100	V
RMS Reverse Voltage	V_R(RMS)	14	21	28	35	42	56	70	V
Average Rectified Output Current @T_L = 100°C (Note 1)	I_O	2.0							A
Non-Repetitive Peak Forward Surge Current 8.3ms Single half sine-wave superimposed on rated load (JEDEC Method)	I_FSM	50							A
Forward Voltage @I_F = 2.0A	V_FM	0.50			0.70		0.85		V
Peak Reverse Current @T_A = 25°C At Rated DC Blocking Voltage @T_A = 100°C	I_RM	0.5 10							mA
Typical Junction Capacitance (Note 2)	Cj	170			140				pF
Typical Thermal Resistance (Note 1)	R_θJA	35							°C/W
Operating and Storage Temperature Range	Tj, T_STG	-65 to +150							°C

Note:

1. Valid provided that leads are kept at ambient temperature at a distance of 9.5mm from the case.

2. Measured at 1.0 MHz and applied reverse voltage of 4.0V D.C.
