PMBT2907A Power Mosfet Transistor Low voltage PNP switching transistors

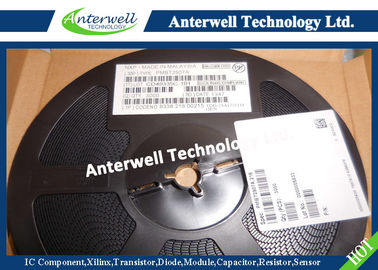

: Large Image : PMBT2907A Power Mosfet Transistor Low voltage PNP switching transistors

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	PMBT2907A

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	12000pcs

Contact Now

Detailed Product Description

Collector-base Voltage:	−60 V	Collector-emitter Voltage:	−60 V
Emitter-base Voltage:	−5 V	Collector Current (DC):	−600 MA
Peak Collector Current:	−800 MA	Peak Base Current:	−200 MA
Highlight:	power mosfet ic , silicon power transistors

PMBT2907; PMBT2907A

PNP switching transistors

FEATURES

• High current (max. 600 mA)

• Low voltage (max. 60 V).

APPLICATIONS

• Switching and linear amplification.

DESCRIPTION

PNP switching transistor in a SOT23 plastic package.

NPN complements: PMBT2222 and PMBT2222A.

MARKING

TYPE NUMBER	MARKING CODE⁽¹⁾
PMBT2907	*2B
PMBT2907A	*2F

Note

1. * = p : Made in Hong Kong.

* = t : Made in Malaysia.

* = W: Made in China.

LIMITING VALUES

In accordance with the Absolute Maximum Rating System (IEC 60134).

SYMBOL	PARAMETER	CONDITIONS	MIN.	MAX.	UNIT
V_CBO	collector-base voltage	open emitter	−	−60	V
V_CEO	emitter-base voltage PMBT2907 PMBT2907A	open base	− −	−40 −60	V V
V_EBO	emitter-base voltage	open collector	−	−5	V
I_C	collector current (DC)		−	−600	mA
I_CM	peak collector current		−	−800	mA
I_BM	peak base current		−	−200	mA
P_tot	total power dissipation	T_amb ≤ 25 °C	−	250	mW
T_stg	storage temperature		−65	+150	°C
T_j	junction temperature		−	150	°C
T_amb	operating ambient temperature		−65	+150	°C
