BUK9508-55A Power Mosfet Transistor TrenchMOS logic level FET

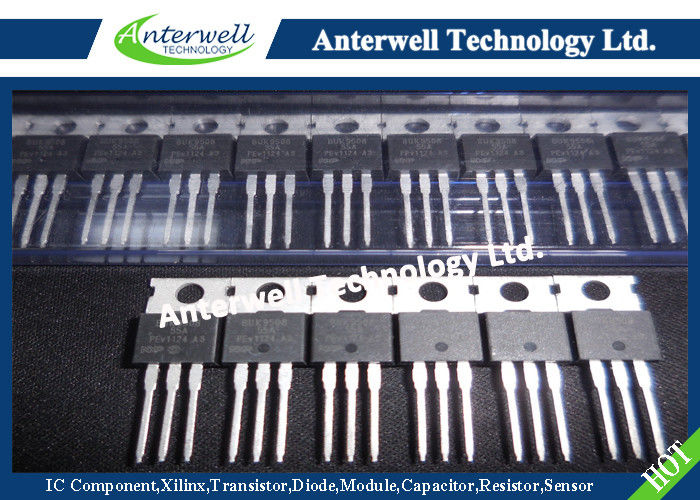

: Large Image : BUK9508-55A Power Mosfet Transistor TrenchMOS logic level FET

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	BUK9508-55A

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	10000pcs

Contact Now

Detailed Product Description

Drain-source Voltage (DC):	55 V	Drain-gate Voltage (DC):	55 V
Gate-source Voltage (DC):	±15 V	Peak Drain Current:	503 A
Total Power Dissipation:	253 W	Storage Temperature:	−55 To +175 °C
High Light:	power mosfet ic , silicon power transistors

BUK95/9608-55A

TrenchMOS™ logic level FET

Description

N-channel enhancement mode field-effect power transistor in a plastic package using TrenchMOS™ technology, featuring very low on-state resistance.

Product availability:

BUK9508-55A in SOT78 (TO-220AB)

BUK9608-55A in SOT404 (D2-PAK).

Features

■ TrenchMOS™ technology

■ Q101 compliant

■ 175 °C rated

■ Logic level compatible.

Applications

■ Automotive and general purpose power switching:

♦ 12 V and 24 V loads

♦ Motors, lamps and solenoids.

Quick reference data

Symbol	Parameter	Conditions	Typ	Max	Unit
V_DS	drain-source voltage (DC)		-	55	V
I_D	drain current (DC)	T_mb = 25 °C; V_GS = 5 V	-	125	A
P_tot	total power dissipation	T_mb = 25 °C	-	253	W
T_j			-	175	°C
R_DSon	drain-source on-state resistance	T_j = 25 °C; V_GS = 5 V; I_D = 25 A	6.8	8	mΩ
		T_j= 25 °C; V_GS = 4.5 V; I_D = 25 A	-	8.5	mΩ
		T_j = 25 °C; V_GS = 10 V; I_D = 25 A	6.4	7.5	mΩ

Simplified outline Symbol

BUK9508-55A Power Mosfet Transistor TrenchMOS logic level FET
