2SD1761 Power Mosfet Transistor Silicon NPN Power Transistors power mosfet module

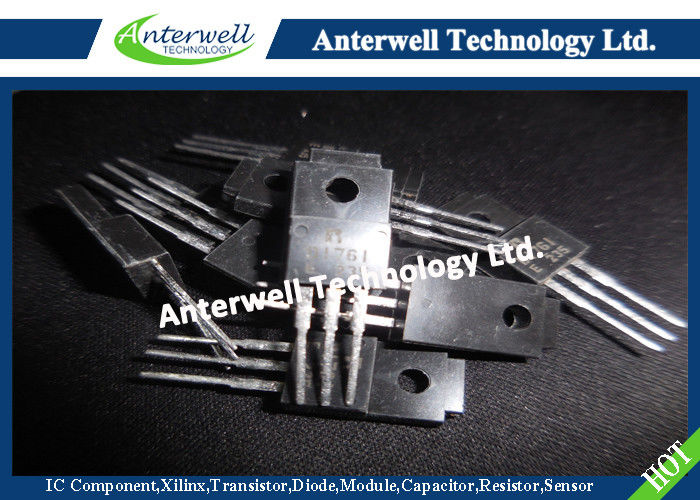

: Large Image : 2SD1761 Power Mosfet Transistor Silicon NPN Power Transistors power mosfet module

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	2SD1761

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	15000pcs

Contact Now

Detailed Product Description

Collector-base Voltage:	80 V	Collector-emitter Voltage:	60 V
Emitter-base Voltage:	5 V	Collector Current (DC):	3 A
Collector Current-Peak:	6 A	Junction Temperature:	150℃
Highlight:	power mosfet ic , multi emitter transistor

Silicon NPN Power Transistors 2SD1761

DESCRIPTION

·With TO-220Fa package

·Low collector saturation voltage

·Complement to type 2SB1187

·Wide safe operating area

APPLICATIONS

·For low frequency power amplifier applications

PINNING

PIN	DESCRIPTION
1	Base
2	Collector
3	Emitter

2SD1761 Power Mosfet Transistor Silicon NPN Power Transistors power mosfet module

Absolute maximum ratings(Ta=25℃)

SYMBOL	PARAMETER	CONDITIONS	VALUE	UNIT
V_CBO	Collector-base voltage	Open emitter	80	V
V_CEO	Collector-emitter voltage	Open base	60	V
V_EBO	Emitter-base voltage	Open collector	5	V
I_C	Collector current (DC)		3	A
I_CM	Collector current-Peak		6	A
P_C	Collector power dissipation	TC=25℃	30	W
P_C	Collector power dissipation	Ta=25℃	2	W
Tj	Junction temperature		150	℃
Tstg	Storage temperature		-55~150	℃

PACKAGE OUTLINE
