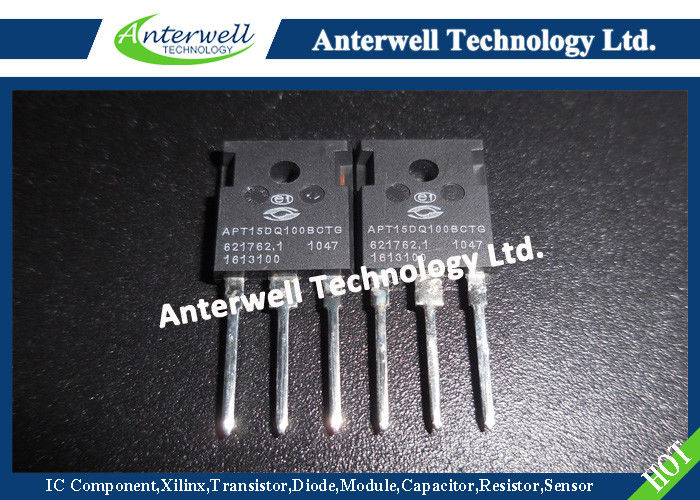

APT15DQ100BCT
APT15DQ100BCTG
ULTRAFAST SOFT RECOVERY RECTIFIER DIODE
PRODUCT APPLICATIONS
• Anti-Parallel Diode
-Switchmode Power Supply
-Inverters
• Free Wheeling Diode
-Motor Controllers
-Converters
-Inverters
• Snubber Diode
• PFC
PRODUCT FEATURES
• Ultrafast Recovery Times
• Soft Recovery Characteristics
• Popular TO-247 Package
• Low Forward Voltage
• Low Leakage Current
• Avalanche Energy Rated
PRODUCT BENEFITS
• Low Losses
• Low Noise Switching
• Cooler Operation
• Higher Reliability Systems
• Increased System Power Density
MAXIMUM RATINGS
All Ratings Per Leg: TC = 25°C unless otherwise specified.
| Symbol | Characteristic / Test Conditions | APT15DQ100BCT(G) | UNIT |
|---|---|---|---|
| VR | Maximum D.C. Reverse Voltage | 1000 | Volts |
| VRRM | Maximum Peak Repetitive Reverse Voltage | 1000 | Volts |
| VRWM | Maximum Working Peak Reverse Voltage | 1000 | Volts |
| IF(AV) |
Maximum Average Forward Current (TC = 126°C, Duty Cycle = 0.5) |
15 | Amps |
| IF(RMS) | RMS Forward Current (Square wave, 50% duty) | 29 | Amps |
| IFSM | Non-Repetitive Forward Surge Current (TJ = 45°C, 8.3ms) | 80 | Amps |
| EAVL | Avalanche Energy (1A, 40mH) | 20 | mJ |
| TJ ,TSTG | Operating and StorageTemperature Range | -55 to 175 | °C |
| TL | Lead Temperature for 10 Sec. | 300 | °C |
