1SMA5913BT3G Rectifier Diode Plastic Surface Mount Zener Voltage Regulators

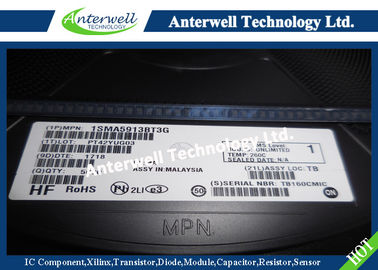

: Large Image : 1SMA5913BT3G Rectifier Diode Plastic Surface Mount Zener Voltage Regulators

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	1SMA5913BT3G

Payment & Shipping Terms:

Minimum Order Quantity:	5000pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	100000pcs

Contact Now

Detailed Product Description

DC Power Dissipation @ TL = 75°C:	1.5 W	DC Power Dissipation @ TA = 25°C:	0.5 W
Operating Temperature:	−65 To +150 °C	Storage Temperature:	−65 To +150 °C
High Light:	diode rectifier circuit , bridge rectifier circuit

DC Power Dissipation @ TL = 75°C:

1.5 W

DC Power Dissipation @ TA = 25°C:

0.5 W

Operating Temperature:

−65 To +150 °C

Storage Temperature:

−65 To +150 °C

High Light:

diode rectifier circuit

bridge rectifier circuit

1SMA5913BT3 Series

1.5 Watt Plastic Surface Mount Zener Voltage Regulators

This complete new line of 1.5 Watt Zener Diodes offers the following advantages.

Features

• Standard Zener Breakdown Voltage Range − 3.3 V to 68 V

• ESD Rating of Class 3 (>16 kV) per Human Body Model

• Flat Handling Surface for Accurate Placement

• Package Design for Top Slide or Bottom Circuit Board Mounting

• Low Profile Package

• Ideal Replacement for MELF Packages

• Pb−Free Packages are Available

Mechanical Characteristics:

CASE: Void-free, transfer-molded plastic

FINISH: All external surfaces are corrosion resistant with readily solderable leads

MAXIMUM CASE TEMPERATURE FOR SOLDERING PURPOSES: 260°C for 10 seconds

POLARITY: Cathode indicated by molded polarity notch or cathode band

FLAMMABILITY RATING: UL 94 V−0 @ 0.125 in

1SMA5913BT3G Rectifier Diode Plastic Surface Mount Zener Voltage Regulators

MAXIMUM RATINGS

Rating	Symbol	Value	Unit
DC Power Dissipation @ T_L = 75°C, Measured Zero Lead Length (Note 1) Derate above 75°C Thermal Resistance, Junction−to−Lead	P_D R_θJL	1.5 20 50	W mW/°C °C/W
DC Power Dissipation @ T_A = 25°C (Note 2) Derate above 25°C Thermal Resistance, Junction−to−Ambient	P_D R_θJA	0.5 4.0 250	W mW/°C °C/W
Operating and Storage Temperature Range	T_J, Tstg	−65 to +150	°C

Rating

Symbol

Value

Unit

DC Power Dissipation @ T_L = 75°C,

Measured Zero Lead Length (Note 1)

Derate above 75°C

Thermal Resistance, Junction−to−Lead

P_D

R_θJL

1.5

mW/°C

°C/W

DC Power Dissipation @ T_A = 25°C (Note 2)

Derate above 25°C

Thermal Resistance, Junction−to−Ambient

P_D

R_θJA

0.5

4.0

250

mW/°C

°C/W

Operating and Storage Temperature Range

T_J, Tstg

−65 to +150

°C

Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability.

1. 1 in square copper pad, FR−4 board.

2. FR−4 Board, using ON Semiconductor minimum recommended footprint.
