IRFBC40 Power Mosfet Transistor N-Channel Power MOSFETs Switch Mode

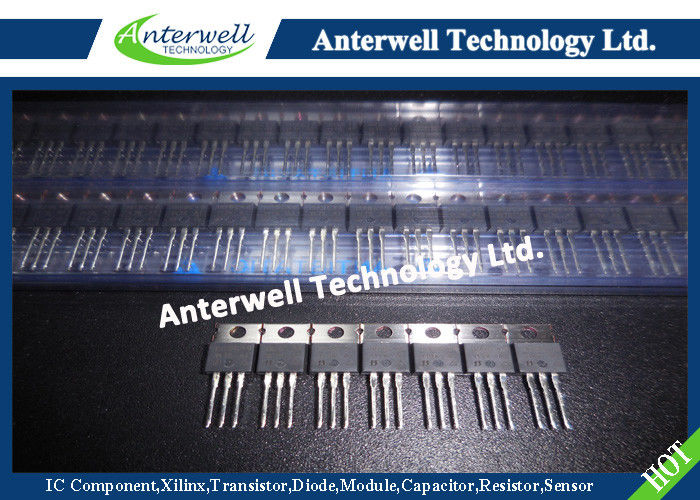

: Large Image : IRFBC40 Power Mosfet Transistor N-Channel Power MOSFETs Switch Mode

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	IRFBC40

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	10000pcs

Contact Now

Detailed Product Description

Pulsed Drain Current:	25 A	Power Dissipation:	125 W
Linear Derating Factor:	1.0 W/°C	Gate-to-Source Voltage:	± 30 V
Peak Diode Recovery Dv/dt:	6.0 V/ns	Operating Junction And Storage Temperature:	-55 To + 150°C
Highlight:	power mosfet ic , multi emitter transistor

SMPS MOSFET IRFBC40A

HEXFET® Power MOSFET

Applications

• Switch Mode Power Supply ( SMPS )

• Uninterruptable Power Supply

• High speed power switching

Benefits

• Low Gate Charge Qg results in Simple Drive Requirement

• Improved Gate, Avalanche and Dynamic dv/dt Ruggedness

• Fully Characterized Capacitance and Avalanche Voltage and Current

• Effective Coss Specified ( See AN 1001)

IRFBC40 Power Mosfet Transistor N-Channel Power MOSFETs Switch Mode

Absolute Maximum Ratings

	Parameter	Max.	Units
I_D @ T_C = 25°C	Continuous Drain Current, V_GS @ 10V	6.2	A
I_D @ T_C = 100°C	Continuous Drain Current, V_GS @ 10V	3.9	A
I_DM	Pulsed Drain Current	25	A
P_D @T_C = 25°C	Power Dissipation	125	W
	Linear Derating Factor	1.0	W/°C
V_GS	Gate-to-Source Voltage	± 30	V
dv/dt	Peak Diode Recovery dv/dt	6.0	V/ns
T_J T_STG	Operating Junction and Storage Temperature Range	-55 to + 150	°C
	Soldering Temperature, for 10 seconds	300 (1.6mm from case )	°C
	Mounting torqe, 6-32 or M3 screw	10 lbf•in (1.1N•m)
