TIP32C Power Mosfet Transistor Complementary Silicon Power Transistors

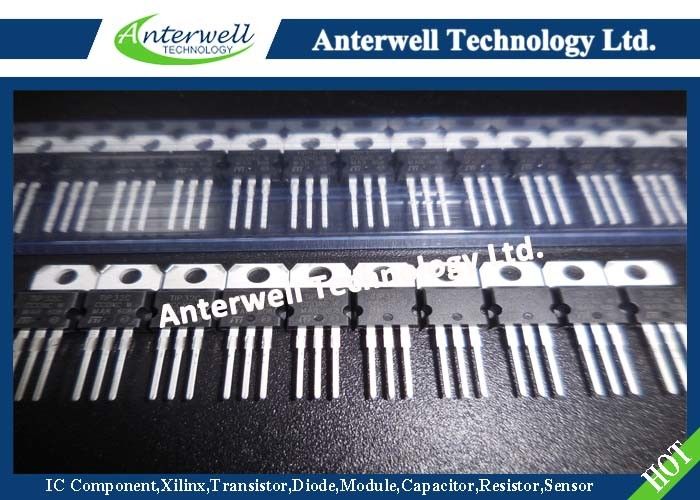

Large Image : TIP32C Power Mosfet Transistor Complementary Silicon Power Transistors

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	TIP32C

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	9500pcs

Contact Now

Detailed Product Description

Collector-base Voltage:	-100 V	Collector-emitter Voltage:	-100 V
Emitter-base Voltage:	-5 V	Collector Current (DC):	-3 A
Collector Current-Pulse:	-5 A	Junction Temperature:	150 ℃
Highlight:	multi emitter transistor , silicon power transistors

Silicon PNP Power Transistors TIP32/32A/32B/32C

DESCRIPTION

• With TO-220C package

• Complement to type TIP31/31A/31B/31C

APPLICATIONS

·Medium power linear and switching applications

PINNING

PIN	DESCRIPTION
1	Emitter
2	Collector;connected to mounting base
3	Base

TIP32C Power Mosfet Transistor Complementary Silicon Power Transistors

Absolute maximum ratings(Ta=25℃)

SYMBOL	PARAMETER		CONDITIONS	VALUE	UNIT
V_CBO	Collector-base voltage	TIP32	Open emitter	-40	V
		TIP32A		-60
		TIP32B		-80
		TIP32C		-100
V_CEO	Collector-emitter voltage	TIP32	Open base	-40	V
		TIP32A		-60
		TIP32B		-80
		TIP32C		-100
V_EBO	Emitter-base voltage		Open collector	-5	V
I_C	Collector current (DC)			-3	A
I_CM	Collector current-Pulse			-5	A
I_B	Base current			-1	A
P_C	Collector power dissipation		T_C=25℃	40	W
P_C	Collector power dissipation		Ta=25℃	2	W
T_J	Junction temperature			150	℃
Tstg	Storage temperature			-65~150	℃
