MJL21193 MJL21194 power mosfet module Silicon Power Transistors

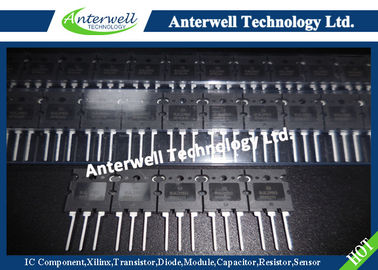

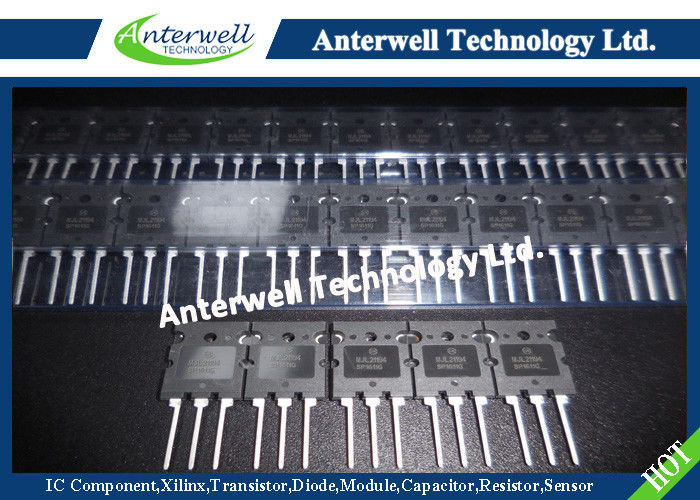

Large Image : MJL21193 MJL21194 power mosfet module Silicon Power Transistors

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	MJL21193 MJL21194

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	10000pcs

Contact Now

Detailed Product Description

Collector–Emitter Voltage:	250 V	Collector–Base Voltage:	400 V
Emitter–Base Voltage:	5 V	Base Current – Continuous:	5 A
Total Power Dissipation:	200 W	Operating And Storage Junction Temperature:	–65 To +150 °C
High Light:	power mosfet ic , silicon power transistors

Silicon Power Transistors

PNP MJL21193

NPN MJL21194

16 AMPERE COMPLEMENTARY SILICON POWER TRANSISTORS MJL21193 MJL21194 power mosfet module Silicon Power Transistors

250 VOLTS

200 WATTS

The MJL21193 and MJL21194 utilize Perforated Emitter technology and are specifically designed for high power audio output, disk head positioners and linear applications.

• Total Harmonic Distortion Characterized

• High DC Current Gain – h_FE = 25 Min @ I_C = 8 Adc

• Excellent Gain Linearity

• High SOA: 2.25 A, 80 V, 1 Second

MAXIMUM RATINGS

Rating	Symbol	Value	Unit
Collector–Emitter Voltage	V_CEO	250	Vdc
Collector–Base Voltage	V_CBO	400	Vdc
Emitter–Base Voltage	V_EBO	5	Vdc
Collector–Emitter Voltage – 1.5 V	V_CEX	400	Vdc
Collector Current — Continuous Peak ⁽¹⁾	I_C	16 30	Adc
Base Current – Continuous	I_B	5	Adc
Total Power Dissipation @ T_C = 25°C Derate Above 25°C	P_D	200 1.43	Watts W/°C
Operating and Storage Junction Temperature Range	T_J, Tstg	–65 to +150	°C

(1) Pulse Test: Pulse Width = 5.0 µs, Duty Cycle ≤10%.
