LM2595S-5.0 / NOPB LM2595 SIMPLE SWITCHERÂ® Power Converter 150 kHz 1A

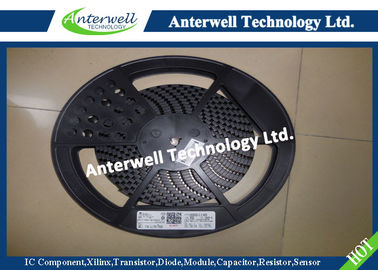

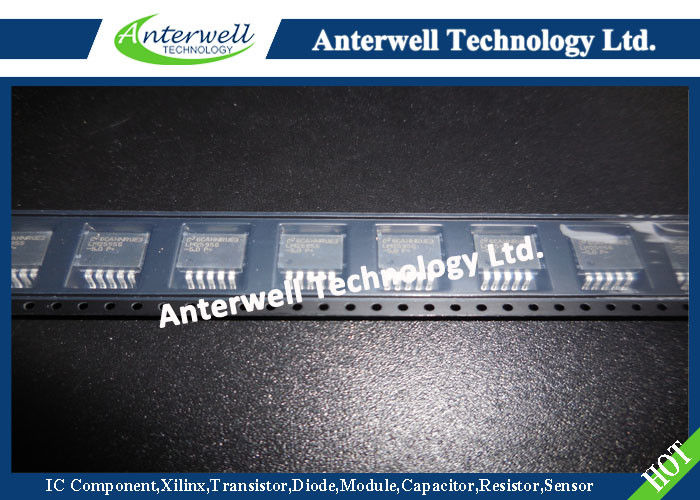

Large Image : LM2595S-5.0 / NOPB LM2595 SIMPLE SWITCHERÂ® Power Converter 150 kHz 1A

Product Details:

Place of Origin:	Original
Brand Name:	TI
Certification:	Original Factory Pack
Model Number:	LM2595S-5.0/NOPB

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Price:	negotiation
Packaging Details:	please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union,PayPal
Supply Ability:	5200PCS

Contact Now

Detailed Product Description

Maximum Supply Voltage:	45V	ON /OFF Pin Input Voltage:	−0.3 ≤ V ≤ +25V
Feedback Pin Voltage:	−0.3 ≤ V ≤ +25V	Power Dissipation:	Internally Limited
Storage Temperature Range:	−65°C To +150°C
Highlight:	diode rectifier circuit , bridge rectifier circuit

LM2595S-5.0/NOPB LM2595 SIMPLE SWITCHERÂ® Power Converter 150 kHz 1A Step-Down Voltage Regulator

FEATURES

• 3.3V, 5V, 12V, and Adjustable Output Versions

• Adjustable Version Output Voltage Range, 1.2V to 37V ±4% Max Over Line and Load Conditions

• Available in TO-220 and TO-263 (Surface Mount) Packages

• Ensured 1A Output Load Current

• Input Voltage Range Up to 40V

• Requires Only 4 External Components

• Excellent Line and Load Regulation Specifications

• 150 kHz Fixed Frequency Internal Oscillator

• TTL Shutdown Capability

• Low Power Standby Mode, IQ Typically 85 μA

• High Efficiency

• Uses Readily Available Standard Inductors

• Thermal Shutdown and Current Limit Protection

Absolute Maximum Ratings (1)(2)

Maximum Supply Voltage	45V
ON /OFF Pin Input Voltage	−0.3 ≤ V ≤ +25V
Feedback Pin Voltage	−0.3 ≤ V ≤ +25V
Output Voltage to Ground (Steady State)	−1V
Power Dissipation	Internally limited
Storage Temperature Range	−65°C to +150°C
ESD Susceptibility Human Body Model (3) 2	2 kV
Vapor Phase (60 sec.)	+215°C
NDH Package (Soldering, 10 sec.)	+260°C
Maximum Junction Temperature	+150°C

LM2595S-5.0 / NOPB LM2595 SIMPLE SWITCHERÂ® Power Converter 150 kHz 1A
