Product Details:
Payment & Shipping Terms:
|
Supply Voltage: | -0.5V To 20V | DC Input Voltage Range: | -0.5V To VDD +0.5V |
---|---|---|---|
DC Input Current, Any One Input: | . ±10mA | Temperature Range: | 55oC To 125oC |
Maximum Junction Temperature: | .175oC | ||
High Light: | integrated circuit ic,integrated circuit components |

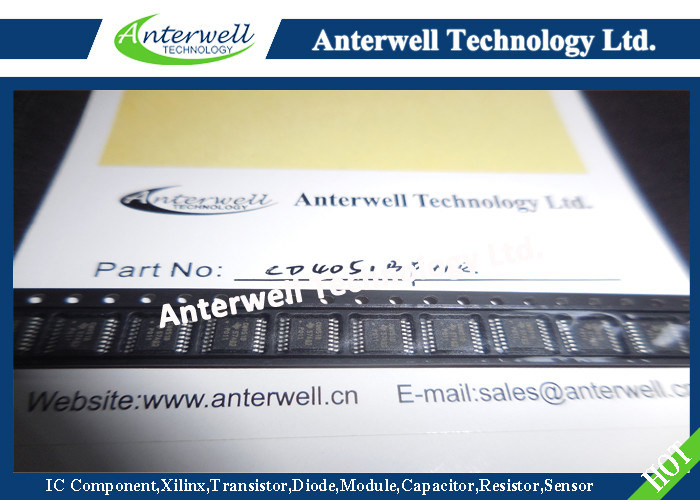

The CD4051B, CD4052B, and CD4053B analog multiplexers are digitally-controlled analog switches having low ON impedance and very low OFF leakage current. Control of analog signals up to 20VP-P can be achieved by digital signal amplitudes of 4.5V to 20V (if VDD-VSS = 3V, a VDD-VEE of up to 13V can be controlled; for VDD-VEE level differences above 13V, a VDD-VSS of at least 4.5V is required).
For example, if VDD = +4.5V, VSS = 0V, and VEE = -13.5V, analog signals from -13.5V to +4.5V can be controlled by digital inputs of 0V to 5V. These multiplexer circuits dissipate extremely low quiescent power over the full VDD-VSS and VDD-VEE supply-voltage ranges, independent of the logic state of the control signals. When a logic “1” is present at the inhibit input terminal, all channels are off.
Features
• Wide Range of Digital and Analog Signal Levels
- Digital . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3V to 20V
- Analog. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ≤20VP-P
• Low ON Resistance, 125Ω (Typ) Over 15VP-P
Signal Input Range for VDD-VEE = 18V
• High OFF Resistance,
Channel Leakage of ±100pA (Typ) at VDD-VEE = 18V
• Logic-Level Conversion for Digital
Addressing Signals of 3V to 20V (VDD-VSS = 3V to 20V) to
Switch Analog Signals to 20VP-P (VDD-VEE = 20V)
• Matched Switch Characteristics, rON = 5Ω (Typ) for VDD-VEE = 15V
• Very Low Quiescent Power Dissipation
Under All DigitalControl Input and Supply Conditions,
0.2µW (Typ) at VDD-VSS = VDD-VEE = 10V
Typical Performance Curves
Functional Block Diagrams
