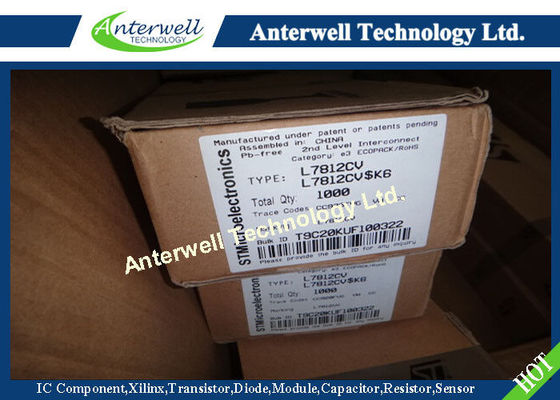

SMD Power Mosfet Module L7812CV TO-220 Power Trans Electronic Compoents
L7812CV TO-220 Power Trans
■ OUTPUT CURRENT TO 1.5A
■ OUTPUT VOLTAGES OF 5; 5.2; 6; 8; 8.5; 9; 10; 12; 15; 18; 24V
■ THERMAL OVERLOAD PROTECTION
■ SHORT CIRCUIT PROTECTION
■ OUTPUT TRANSITION SOA PROTECTION
The L7800 series of three-terminal positive regulators is available in TO-220, TO-220FP, TO-220FM, TO-3 and D2PAK packages and several fixed output voltages, making it useful in a wide range of applications.
These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type employs internal current limiting, thermal shut-down and safe area protection, making it essentially indestructible.
If adequate heat sinking is provided, they can deliver over 1A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltage and currents.
Table 1: Absolute Maximum Ratings
|VI||DC imput voltage||for Vo=5 to18V||35||V|
|Io||Output current||Internally Limited|
|Pd||Power dissipation||Internally Limited|
|Tstg||Storage temperature range||-65 to150||°C|
|Top||Operating junction temperature range||for L7800||-55 to150||°C|
|for L7800C||0 to 150|
