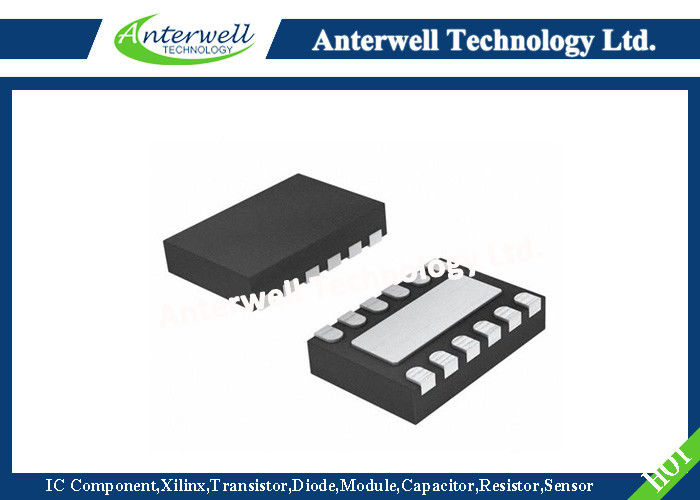

bq27510DRZR-G2 System-Side Impedance Track™ Fuel Gauge With Direct Battery Connection





FEATURES



Battery Fuel Gauge for 1-Series Li-Ion





Applications



Resides on System Main Board



Works with Embedded or Removable

Battery Packs



Uses PACK+, PACK–, and T Battery Terminals



Can be Powered Directly From Battery Pack (no LDO required)



Microcontroller Peripheral Provides:



Accurate Battery Fuel Gauging



Battery Low Interrupt Warning



Battery Insertion Indicator



– 64 Bytes of Non-Volatile Scratch Pad FLASH





Battery Fuel Gauging Based on Patented

Impedance Track™ Technology



Models Battery Discharge Curve for Accurate Time-To-Empty Predictions



Automatically Adjusts for Battery Aging,Battery Self-Discharge, and Temperature/Rate Inefficiencies



Low-Value Sense Resistor (10 mΩ or less)



• I 2C™ for Connection to System



Microcontroller Port



Small 12-pin 2,5 mm × 4 mm SON Package





APPLICATIONS



Smartphones



PDAs



Digital Still and Video Cameras



Handheld Terminals





MP3 or Multimedia Players





DESCRIPTION





The Texas Instruments bq27510-G2 system-side Li-Ion battery fuel gauge is a microcontroller peripheral that provides fuel gauging for single-cell  Li-Ion battery packs. The device requires little system.microcontroller firmware development. The bq27510-G2 resides on the system’s main board and manages an embedded battery (non-removable) or a removable battery pack.





The bq27510-G2 uses the patented Impedance Track™ algorithm for fuel gauging, and provides information such as remaining battery capacity (mAh), state-of-charge (%), run-time to empty (min.), battery voltage (mV), and temperature (°C)







Battery fuel gauging with the bq27510-G2 requires  only PACK+ (P+), PACK– (P–), and Thermistor (T)connections to a removable battery pack or embedded battery.







bq27510DRZR-G2 System-Side Impedance Track™ Fuel Gauge With Direct Battery Connection







DEVICE INFORMATION



AVAILABLE OPTIONS







PART NUMBER(1) PACKAGE(2) TA

COMMUNICATION

FORMAT

TAPE and REEL

QUANTITY

bq27510DRZR-G2

12-pin, 2,5-mm × 4-mm

 SON

–40°C to 85°C  I 2C    3000
bq27510DRZT-G2     250







bq27510DRZR-G2 System-Side Impedance Track™ Fuel Gauge With Direct Battery Connection







                                                              PIN FUNCTIONS







PIN TYPE(1) DESCRIPTION
NAME NO.
BI/TOUT   1 I/O Battery-insertion detection input. Power pin for pack thermistor network. Thermistor-multiplexer control pin. Open-drain I/O. Use with pull-up resistor >1MΩ (1.8 MΩ typical).
REG25   2   P 2.5 V output voltage of the internal integrated LDO.
REGIN   3   P The input voltage for the internal integrated LDO.
BAT   4   I Cell voltage measurement input. ADC input.
Vcc   5   P Processor power input. Decouple with 0.1mF ceramic capacitor minimum
Vss   6   P Device ground
SRP   7   IA Analog input pin connected to the internal coulomb counter where SRP is nearest the PACK-connection. Connect to 5-mΩ to 20-mΩ sense resistor
SRN   8   IA Analog input pin connected to the internal coulomb counter where SRN is nearest the VSS-connection. Connect to a 5-mΩ to 20-mΩ sense resistor.
TS   9   IA Pack thermistor voltage sense (use 103AT-type thermistor). ADC input
SDA  10   I/O Slave I 2C serial communications data line for communication with system (Master). Open-drain I/O. Use with 10-kΩ pull-up resistor (typical).
SCL   11    I Slave I 2C serial communications clock input line for communication with system (Master). Use with 10-kΩ pull-up resistor (typical).
BAT_LOW BAT_GD   12   O Battery-good or Battery-low output indicator. Desired function polarity selected through the Operation Configuration register. Open-drain output
