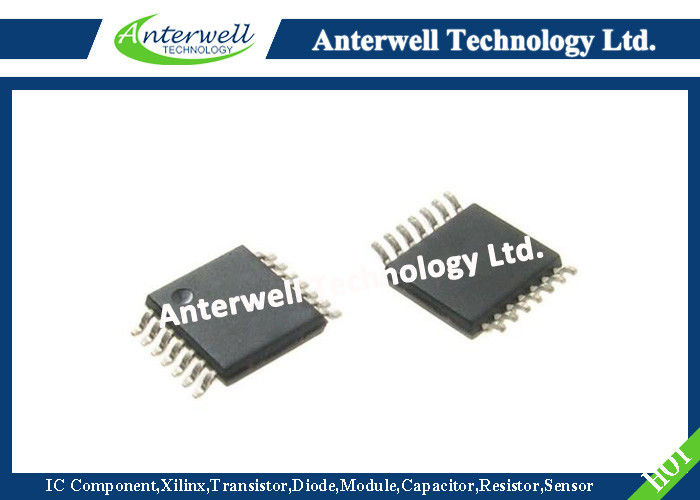

74VHC14MTCX integrated Circuit Chip Hex Schmitt Inverter

China 74VHC14MTCX  integrated Circuit Chip Hex Schmitt Inverter supplier

Large Image :  74VHC14MTCX integrated Circuit Chip Hex Schmitt Inverter

Product Details:

Place of Origin: original factory
Brand Name: Anterwell
Certification: new & original
Model Number: 74VHC14MTCX

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiate
Packaging Details: Please contact me for details
Delivery Time: 1 day
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 8200pcs
Contact Now
Detailed Product Description
Datasheet: Pls Contact Us For The Details. Working Temperature-Max: + 85 C
Power Supply Voltage - Maximum.: 5.5 V Power Supply Voltage - Min: 2 V
Factory Packing Quantity: 2500 Unit Weight: 55.300 Mg



74VHC14MTCX  Hex Schmitt Inverter





General Description



The VHC14 is an advanced high speed CMOS Hex Schmitt Inverter fabricated with silicon gate CMOS technology. It achieves the high speed operation similar to equivalent Bipolar Schottky TTL while maintaining the CMOS low power dissipation. Pin configuration and function are the same as the VHC04 but the inputs have hysteresis between the positive-going and negative-going input thresholds, which are capable of transforming slowly changing input signals into sharply defined, jitter-free output signals, thus providing greater noise margin than conventional inverters. An input protection circuit ensures that 0V to 7V can be applied to the input pins without regard to the supply voltage. This device can be used to interface 5V to 3V systems and two supply systems such as battery back up. This circuit prevents device destruction due to mismatched supply and input voltages.





Features



High Speed: tPD 5.5 ns (typ) at VCC 5V

Low power dissipation: ICC 2 PA (Max) at TA 25qC

High noise immunity: VNIH VNIL 28% VCC (Min)

Power down protection is provided on all inputs

Low noise: VOLP 0.8V (Max)

Pin and function compatible with 74HC14





Ordering Code:





Order Number Package Numbe Package Description
74VHC14M  M14A 14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150" Narrow
74VHC14MX_NL M14A Pb-Free 14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150" Narrow
74VHC14SJ M14D Pb-Free 14-Lead Small Outline Package (SOP), EIAJ TYPE II, 5.3mm Wide
74VHC14MTC MTC14 14-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide
74VHC14MTC_NL MTC14 Pb-Free 14-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide
74VHC14MTCX_NL MTC14 Pb-Free 14-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide
74VHC14N N14A 14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300" Wide







74VHC14MTCX  integrated Circuit Chip Hex Schmitt Inverter



Absolute Maximum Ratings





Supply Voltage (VCC) 0.5V to 7.0V

DC Input Voltage (VIN) 0.5V to 7.0V

DC Output Voltage (VOUT) 0.5V to VCC  0.5V

Input Diode Current (IIK) 20 mA Output Diode Current (IOK) r20 mA

DC Output Current (IOUT) r25 mA

DC VCC/GND Current (ICC) r50 mA

Storage Temperature (TSTG) 65qC to 150qC

Lead Temperature (TL) Soldering (10 seconds) 260qC





Recommended Operating Conditions



Supply Voltage (VCC) 2.0V to 5.5V

Input Voltage (VIN) 0V to 5.5V

Output Voltage (VOUT) 0V to VCC

Operating Temperature (TOPR) 40qC to 85qC









74VHC14MTCX  integrated Circuit Chip Hex Schmitt Inverter
