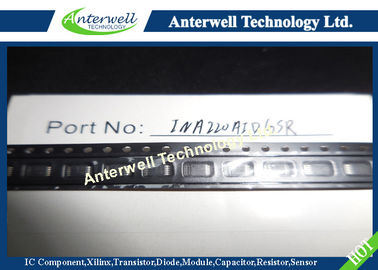

High Or Low Side Bi-Directional Current / Power Monitor With Two Wire Interface Ina220aidgsr

: Large Image : High Or Low Side Bi-Directional Current / Power Monitor With Two Wire Interface Ina220aidgsr

Product Details:

Place of Origin:	original factory
Brand Name:	anterwell
Certification:	new & original
Model Number:	INA220AIDGSR

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	negotiation
Packaging Details:	please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, PayPal
Supply Ability:	1000pcs

Contact Now

Detailed Product Description

Supply Voltage, Vs:	6V	Analog Inputs, VIN+, VIN–:	Differential (VIN+) – (VIN–) (2), Common-Mode
Differential (VIN+) – (VIN–) (2):	–26 To +26V	Common-Mode:	–0.3 To +26V
SDA:	GND – 0.3 To +6V	SCL:	GND – 0.3 To VS + 0.3V
High Light:	integrated circuit ic , integrated circuit components

FEATURES

• HIGH- or LOW-SIDE SENSING

• SENSES BUS VOLTAGES FROM 0V TO +26V

• REPORTS CURRENT, VOLTAGE, AND POWER

• 16 PROGRAMMABLE ADDRESSES

• HIGH ACCURACY: 1% (Max) OVER

TEMPERATURE

• USER PROGRAMMABLE CALIBRATION

• FAST (3.4MHz) TWO-WIRE MODE

• MSOP-10 PACKAGE

APPLICATIONS

High Or Low Side Bi-Directional Current / Power Monitor With Two Wire Interface Ina220aidgsr

• SERVERS

• TELECOM EQUIPMENT

• NOTEBOOK COMPUTERS

• POWER MANAGEMENT

• BATTERY CHARGERS

• AUTOMOTIVE

• POWER SUPPLIES

• TEST EQUIPMENT

DESCRIPTION

The INA220 is a current shunt and power monitor with an Two-Wire interface. The INA220 monitors both shunt drop and supply voltage. A programmable calibration value, combined with an internal multiplier, enables direct readouts in

amperes. An additional multiplying register

calculates power in watts. The Two-Wire

interface features 16 programmable addresses.

The separate shunt input on the INA220

allows it to be used in systems with

low-side sensing.

INA220 Register Block Diagram
