Product Details:
Payment & Shipping Terms:
|
Maximum Recurrent Peak Reverse Voltage: | 1000v | Maximum RMS Voltage: | 700v |
---|---|---|---|
Maximum DC Blocking Voltage: | 1000v | Maximum Average Forward Rectified Current At Ta=40℃: | 1A |
Peak Forward Surge Current 8.3ms Single Half Sine-wave Superimposed On Rated Load: | 50A | Maximum Instantaneous Forward Voltage At Forward Current 1.0A: | 1.1V |
High Light: | electronics ic chip,integrated circuit ic |
FEATURES

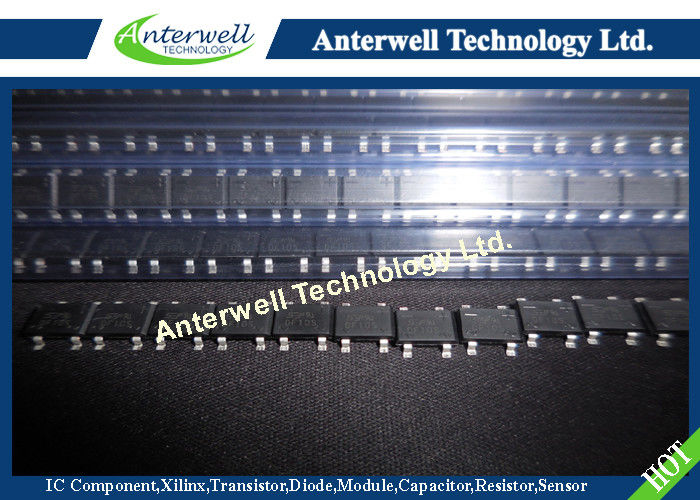

For surface mount application
Reliable low cost construction utilizing molded plastic
technique
Surge overload rating: 50A peak
MECHANICAL DATA
. Terminal: Plated leads solderable per
MIL-STD 202E, method 208C
. Case: UL-94 Class V-0 recognized Flame Retardant Epoxy
. Polarity: Polarity symbol marked on body
. Mounting position: any
FIG.1-MAXIMUM NON-REPETITIVE FORWARD FIG.2-TYPICAL FORWARD CURRENT
SURGE CURRENT DERATING CURVE
