Product Details:
Payment & Shipping Terms:
|
Storage Temperature: | -55 To +150 °C | Operating Temperature: | -55 To +100 °C |
---|---|---|---|
Wave Solder Temperature (see Page 14 For Reflow Solder Profiles): | 260 For 10 Sec °C | Total Device Power Dissipation @ TA = 25°C Derate Above 25°C: | 250 MW |
DC/Average Forward Input Current: | 100 (non-M), 60 (-M) MA | ||
High Light: | electronics ic chip,integrated circuit ic |

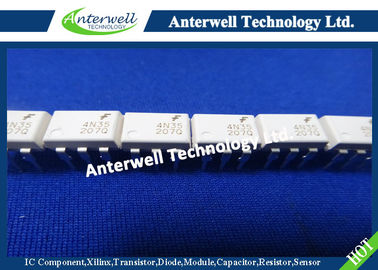

GENERAL PURPOSE 6-PIN PHOTOTRANSISTOR OPTOCOUPLERS
DESCRIPTION
The general purpose optocouplers consist of a gallium arsenide infrared emitting diode driving a silicon phototransistor in a 6-pin dual in-line package.
FEATURES
• Also available in white package by specifying -M suffix, eg. 4N25-M
• UL recognized (File # E90700)
• VDE recognized (File # 94766) - Add option V for white package (e.g., 4N25V-M) - Add option 300 for black package (e.g., 4N25.300)
APPLICATIONS
• Power supply regulators
• Digital logic inputs
• Microprocessor inputs
Parameter | Symbol | Value | Units |
Storage Temperature | TSTG | -55 to +150 | °C |
Operating Temperature | TOPR | -55 to +100 | °C |
Wave solder temperature (see page 14 for reflow solder profiles) |
TSOL | 260 for 10 sec | °C |
Total Device Power Dissipation @ TA = 25°C Derate above 25°C |
PD | 250 | mW |
DC/Average Forward Input Current | IF |
100 (non-M), 60 (-M) |
mA |
Reverse Input Voltage | VR | 6 | V |
Forward Current - Peak (300µs, 2% Duty Cycle) | IF(pk) | 3 | A |
TYPICAL PERFORMANCE CURVES
