Product Details:
Payment & Shipping Terms:
|
| Storage Temperature: | 55 To +150 °C | Operating Temperature: | -55 To +110 °C |
|---|---|---|---|
| Lead Solder Temperature: | 260 For 10 Sec °C | Junction Temperature: | 125 Max. °C |
| Junction-to-Case Thermal Resistance: | 210 °C/W | ||
| High Light: | electronics ic chip,integrated circuit ic |
||

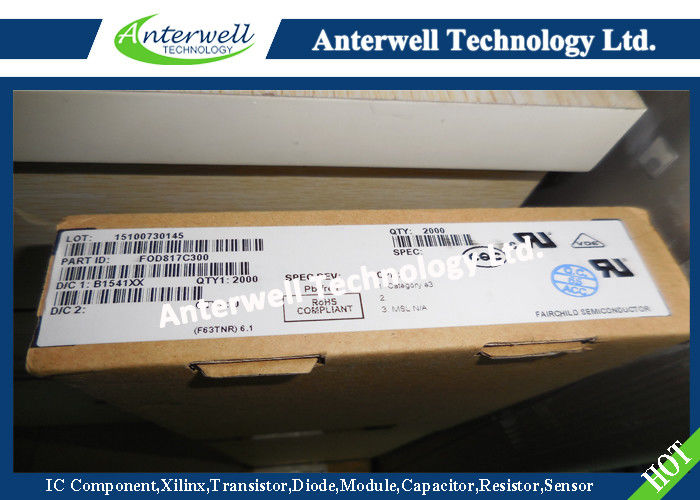

FOD814 Series, FOD817 Series
4-Pin High Operating Temperature Phototransistor Optocouplers
Features
■ AC input response (FOD814 only)
■ Applicable to Pb-free IR reflow soldering
■ Compact 4-pin package
■ Current transfer ratio in selected groups:
FOD814: 20–300% FOD817: 50–600%
FOD814A: 50–150% FOD817A: 80–160%
FOD817B: 130–260% FOD817C: 200–400%
FOD817D: 300–600%
■ C-UL, UL and VDE approved
■ High input-output isolation voltage of 5000Vrms
■ Minimum BVCEO of 70V guaranteed
■ Higher operating temperatures (versus H11AXXX counterparts)
Functional Block Diagram
