3 V Voltage Integrated Circuit Chip Monitoring Microprocessor Supervisory Circuits ADM706SARZ

FEATURES                                                                                             FUNCTIONAL BLOCK DIAGRAMS

Precision supply voltage monitor

    2.63 V (ADM706P, ADM706R, ADM708R)

    2.93 V (ADM706S, ADM708S)

    3.08 V (ADM706T, ADM708T)

100 μA quiescent current

200 ms reset pulse width

Debounced manual reset input (^MR)

Independent watchdog timer

    1.6 second timeout (ADM706x)

Reset output

    Active high (ADM706P)

    Active low (ADM706R, ADM706S, ADM706T)

    Both active high and active low

    (ADM708R,ADM708S,ADM708T)

Voltage monitor for power-fail or low battery warning

Guaranteed ^RESET valid with V_CC = 1 V

Superior upgrade for MAX706P/R/S/T, MAX708R/S/T

APPLICATIONS

Microprocessor systems

Computers

Controllers

Intelligent instruments

Critical microprocessor monitoring

Battery-operated systems

Portable instruments

GENERAL DESCRIPTION

The ADM706P/ADM706R/ADM706S/ADM706T and the

ADM708R/ADM708S/ADM708T microprocessor supervisory

circuits are suitable for monitoring either 3 V or 3.3 V power

supplies.

The ADM706P/ADM706R/ADM706S/ADM706T provide

power-supply monitoring circuitry that generate a reset output

during power-up, power-down, and brownout conditions. The

reset output remains operational with VCC as low as 1 V.

Independent watchdog monitoring circuitry is also provided.

This is activated if the watchdog input has not been toggled

within 1.6 seconds.

In addition, there is a 1.25 V threshold detector for power-fail

warning, low battery detection, or to monitor an additional power

supply. An active low debounced ^MR input is also included.

The ADM706R, ADM706S, and ADM706T are identical except

for the reset threshold monitor levels, which are 2.63 V, 2.93 V, and

3.08 V, respectively. The ADM706P is identical to the ADM706R in

that the reset threshold is 2.63 V. It differs only in that it has an

active high reset output.

The ADM708R/ADM708S/ADM708T provide similar functio-

nality as the ADM706R/ADM706S/ADM706T and only differ

in that a watchdog timer function is not available. Instead, an

active high reset output (RESET) is provided in addition to the

active low (RESET) output.

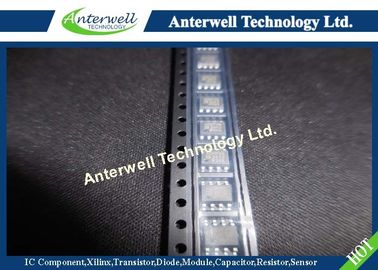

All parts are available in narrow 8-lead PDIP and 8-lead SOIC

packages.
