Product Details:
Payment & Shipping Terms:
|
Feature 1: | Single AD8041 And Quad AD8044 Also Available | Feature 2: | Fully Specified At +3 V, +5 V, And ±5 V Supplies |
---|---|---|---|
Feature 3: | Output Swings To Within 30 MV Of Either Rail | Feature 4: | Input Voltage Range Extends 200 MV Below Ground |
Feature 5: | No Phase Reversal With Inputs 0.5 V Beyond Supplies | Feature 6: | Low Power Of 5.2 MA Per Amplifier |
High Light: | electronics ic chip,integrated circuit components |
FEATURES
Single AD8041 and quad AD8044 also available
Fully specified at +3 V, +5 V, and ±5 V supplies
Output swings to within 30 mV of either rail
Input voltage range extends 200 mV below ground
No phase reversal with inputs 0.5 V beyond supplies
Low power of 5.2 mA per amplifier
High speed and fast settling on 5 V
160 MHz, −3 dB bandwidth (G = +1)
200 V/μs slew rate
39 ns settling time to 0.1%
Good video specifications (RL = 150 Ω, G = +2)
Gain flatness of 0.1 dB to 14 MHz
0.02% differential gain error
0.04° differential phase error
Low distortion: −64 dBc worst harmonic @ 10 MHz
Drives 50 mA 0.5 V from supply rails
APPLICATIONS CONNECTION DIAGRAM
Video switchers
Distribution amplifiers
Analog-to-digital drivers
Professional cameras
CCD Imaging systems
Ultrasound equipment (multichannel)
GENERAL DESCRIPTION

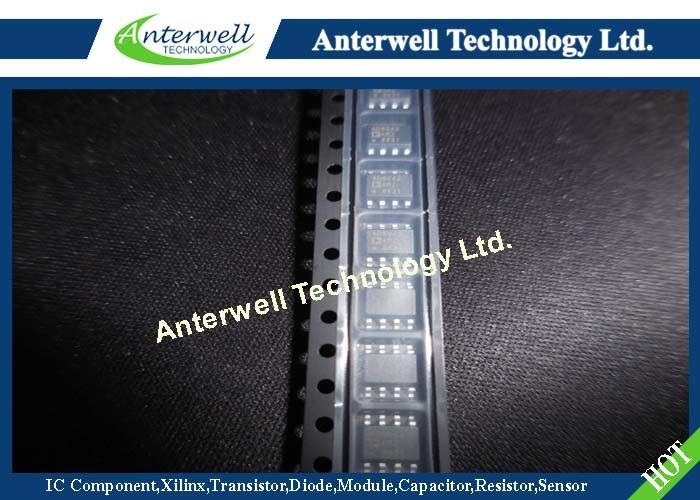

The AD8042 is a low power voltage feedback, high speed amplifier
designed to operate on +3 V, +5 V, or ±5 V supplies. It has true
single-supply capability with an input voltage range extending
200 mV below the negative rail and within 1 V of the positive rail.
The output voltage swing extends to within 30 mV of each rail,
providing the maximum output dynamic range. Additionally, it
features gain flatness of 0.1 dB to 14 MHz while offering differential
gain and phase error of 0.04% and 0.06° on a single 5 V supply.
This combination of features makes the AD8042 useful for
professional video electronics, such as cameras, video switchers,
or any high speed portable equipment. The low distortion and
fast settling of the AD8042 make it ideal for buffering single-
supply, high speed analog-to-digital converters (ADCs).
The AD8042 offers a low power supply current of 12 mA
maximum and can run on a single 3.3 V power supply. These
features are ideally suited for portable and battery-powered
applications where size and power are critical.
The wide bandwidth of 160 MHz along with 200 V/μs of slew
rate on a single 5 V supply make the AD8042 useful in many
general-purpose, high speed applications where single supplies
from +3.3 V to +12 V and dual power supplies of up to ±6 V are
needed. The AD8042 is available in 8-lead PDIP and 8-lead
SOIC_N packages.
