Smart High Side Power Switch Two Channels 2 x 30mз Current Sense BTS740S2

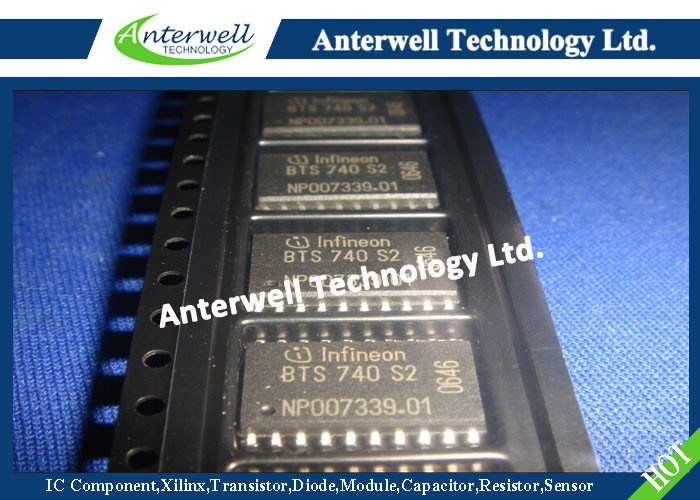

: Large Image : Smart High Side Power Switch Two Channels 2 x 30mз Current Sense BTS740S2

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	BTS740S2

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	3600pcs

Contact Now

Detailed Product Description

Supply Voltage:	43 V	Operating Temperature Range:	-40 ...+150°C
Storage Temperature Range:	-55 ...+150°C	Input Voltage:	-10 ... +16 V
High Light:	electronics ic chip , integrated circuit components

Supply Voltage:

43 V

Operating Temperature Range:

-40 ...+150°C

Storage Temperature Range:

-55 ...+150°C

Input Voltage:

-10 ... +16 V

High Light:

electronics ic chip

integrated circuit components

Smart High-Side Power Switch Two Channels: 2 x 30mΩ Current Sense

Product Summary Package

Smart High Side Power Switch Two Channels 2 x 30mз Current Sense BTS740S2

Operating Voltage V_bb(on)	5.0...34V
Active channels	one	two parallel
On-state Resistance R_ON	30mΩ	15mΩ
Nominal load current I_L(NOM)	5.5A	8.5A
Current limitation I_L(SCr)	24A	24A

General Description
• N channel vertical power MOSFET with charge pump, ground referenced CMOS compatible input,
diagnostic feedback and proportional load current sense monolithically integrated in Smart SIPMOS
technology.
• Providing embedded protective functions

Applications
• µC compatible high-side power switch with diagnostic feedback for 12V and 24V grounded loads
• All types of resistive, inductive and capacitve loads
• Most suitable for loads with high inrush currents, so as lamps
• Replaces electromechanical relays, fuses and discrete circuits

Basic Functions
• CMOS compatible input
• Undervoltage and overvoltage shutdown with auto-restart and hysteresis
• Fast demagnetization of inductive loads
• Logic ground independent from load ground

Protection Functions
• Short circuit protection Smart High Side Power Switch Two Channels 2 x 30mз Current Sense BTS740S2
• Overload protection
• Current limitation
• Thermal shutdown
• Overvoltage protection (including load dump) with external
resistor
• Reverse battery protection with external resistor
• Loss of ground and loss of Vbb protection
• Electrostatic discharge protection (ESD)

Diagnostic Functions
• Proportinal load current sense
• Diagnostic feedback with open drain output
• Open load detection in OFF-state with external resistor
• Feedback of thermal shutdown in ON-state

Functional diagram

Maximum Ratings at Tj = 25°C unless otherwise specified

Parameter	Symbol	Values	Unit
Supply voltage	V_bb	43	V
Supply voltage for full short circuit protection T_j,start =-40 ...+150°C	V_bb	34	V
Load current	I_L	self-limited	A
Load dump protection1) V_LoadDump = V_A + V_s, V_A = 13.5 V R_I ²) = 2 Ω, t_d = 200 ms; IN= low or high, each channel loaded with R_L = 7.0 Ω,	V_Loaddump³⁾	60	V
Operating temperature range Storage temperature range	T_j T_stg	-40 ...+150 -55 ...+150	°C
Power dissipation (DC)4) Ta = 25°C: (all channels active) Ta = 85°C:	P_tot
Maximal switchable inductance, single pulse V_bb =12V, T_j,start =150°C⁴), I_L = 5.5 A, E_AS = 370 mJ, 0Ω one channel: I_L= 8.5 A, E_AS = 790 mJ, 0Ω two parallel channels:	Z_L	18 16	mH
Electrostatic discharge capability (ESD) IN: (Human Body Model) ST, IS: out to all other pins shorted: acc. MIL-STD883D, method 3015.7 and ESD assn. std. S5.1-1993 R=1.5kΩ; C=100pF	V_ESD	1.0 4.0 8.0	kV
Input voltage (DC)	V_IN	-10 ... +16	V
Current through input pin (DC) Current through status pin (DC) Current through current sense pin (DC)	I_IN I_ST I_IS	±2.0 ±5.0 ±14	mA
