Product Details:
Payment & Shipping Terms:
|
| Feature: | 2-kV ESD Protection For: − LM224K, LM224KA − LM324K, LM324KA − LM2902K, LM2902KV, LM2902KAV | Feature2: | Wide Supply Ranges − Single Supply . . . 3 V To 32 V (26 V For LM2902) − Dual Supplies . . . 1.5 V To 16 V (13 V For LM2902) |
|---|---|---|---|
| Feature3: | Low Supply-Current Drain Independent Of Supply Voltage . . . 0.8 MA Typ | Feature4: | Common-Mode Input Voltage Range Includes Ground, Allowing Direct Sensing Near Ground |
| Feature5: | Low Input Bias And Offset Parameters − Input Offset Voltage . . . 3 MV Typ A Versions . . . 2 MV Typ | ||
| High Light: | electronics ic chip,integrated circuit ic |
||

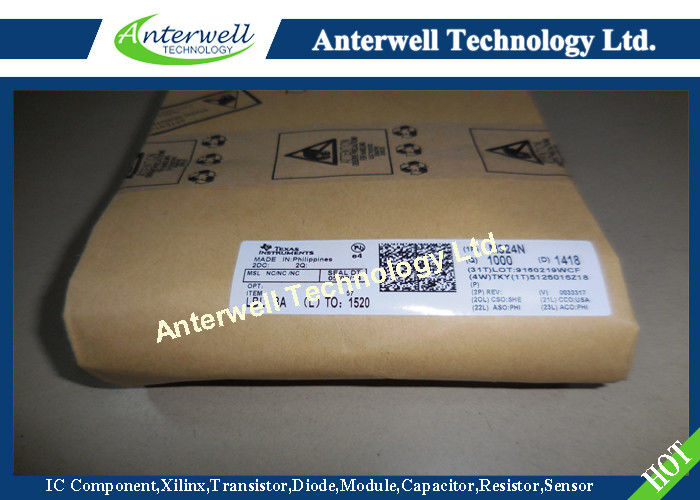

Linear Integrated Circuit Chip LM324N Quadruple Operational Amplifiers
LM324N Quadruple Operational Amplifiers Internal Frequency Compensation
2-kV ESD Protection for:
− LM224K, LM224KA
− LM324K, LM324KA
− LM2902K, LM2902KV, LM2902KAV
Wide Supply Ranges
− Single Supply . . . 3 V to 32 V (26 V for LM2902)
− Dual Supplies . . . 1.5 V to 16 V (13 V for LM2902) Low
Supply-Current Drain Independent of Supply Voltage . . . 0.8 mA Typ
Common-Mode Input Voltage Range Includes Ground, Allowing Direct Sensing Near Ground
Low Input Bias and Offset Parameters − Input Offset Voltage . . . 3 mV Typ A Versions . . . 2 mV Typ − Input Offset Current . . . 2 nA Typ − Input Bias Current . . . 20 nA Typ A Versions . . . 15 nA
Typ
Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage . . . 32 V (26 V for LM2902)
Open-Loop Differential Voltage Amplification . . . 100 V/mV Typ
Internal Frequency Compensation
description/ordering information
These devices consist of four independent high-gain frequency-compensated operational amplifiers that are designed specifically to operate from a single supply over a wide range of voltages. Operation from split supplies also is possible if the difference between the two supplies is 3 V to 32 V (3 V to 26 V for the LM2902), and VCC is at least 1.5 V more positive than the input common-mode voltage. The low supply-current drain is independent of the magnitude of the supply voltage.
Applications include transducer amplifiers, dc amplification blocks, and all the conventional operational-amplifier circuits that now can be more easily implemented in single-supply-voltage systems. For example, the LM124 can be operated directly from the standard 5-V supply that is used in digital systems and provides the required interface electronics, without requiring additional ±15-V supplies.
operating conditions, VCC = ±15 V, TA = 25°C
| PARAMETER | TEST CONDITIONS | TYP | UNIT |
| SR Slew rate at unity gain | RL = 1 MΩ, CL = 30 pF, VI = ±10 V (see Figure 1) | 0.5 | V/µs |
| B1 Unity-gain bandwidth | RL = 1 MΩ, CL = 20 pF (see Figure 1) | 1.2 | MHz |
| Vn Equivalent input noise voltage | RS = 100 Ω, VI = 0 V, f = 1 kHz (see Figure 2) | 35 | nV/√Hz |
NOTES:
A. All linear dimensions are in millimeters.
B. This drawing is subject to change without notice.
C. Body dimensions do not include mold flash or protrusion not to exceed 0,15.
D. Falls within JEDEC MO-153
