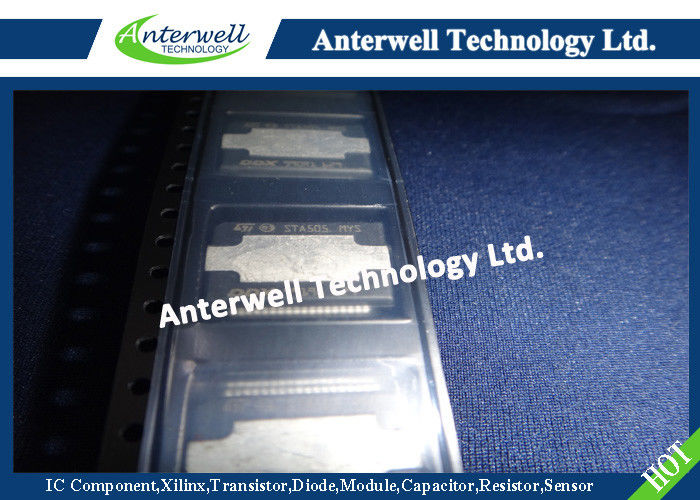

STA505 40V 3.5A Integrated Circuit Chip QUAD POWER HALF BRIDGE electronic component

China STA505 40V 3.5A Integrated Circuit Chip QUAD POWER HALF BRIDGE electronic component supplier

Large Image :  STA505 40V 3.5A Integrated Circuit Chip QUAD POWER HALF BRIDGE electronic component

Product Details:

Place of Origin: original factory
Brand Name: Anterwell
Certification: new & original
Model Number: STA505

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiate
Packaging Details: Please contact me for details
Delivery Time: 1 day
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 10000pcs
Contact Now
Detailed Product Description
VCC: 40V Vmax: 5.5V
Top: -40 To 90°C Tstg, Tj: -40 To 150°C

STA505
40V 3.5A QUAD POWER HALF BRIDGE


FEATURES

■ MULTIPOWER BCD TECHNOLOGY
■ MINIMUM INPUT OUTPUT PULSE WIDTH DISTORTION
■ 200mΩ RdsON COMPLEMENTARY DMOS OUTPUT STAGE
■ CMOS COMPATIBLE LOGIC INPUTS
■ THERMAL PROTECTION
■ THERMAL WARNING OUTPUT
■ UNDER VOLTAGE PROTECTION

DESCRIPTION
STA505 is a monolithic quad half bridge stage in Multipower BCD Technology. The device can be used as dual bridge or reconfigured, by connecting CONFIG pin to Vdd pin, as single bridge with double current capability, and as half bridge (Binary mode) with half current capability. The device is particularly designed to make the output stage of a stereo All-Digital High Efficiency (DDX™) amplifier capable to deliver 50 + 50W @ THD = 10% at Vcc 30V output power on 8Ω load and 80W @ THD = 10% at Vcc 36V on 8Ω load in single BTL configuration. The input pins have threshold proportional to VL pin voltage.

Absolute Maximum Ratings

Symbol Parameter Value Unit
VCC DC Supply Voltage (Pin 4,7,12,15) 40 V
Vmax Maximum Voltage on pins 23 to 32 5.5 V
Top Operating Temperature Range -40 to 90 °C
Tstg, T Storage and Junction Temperature -40 to 150 °C
