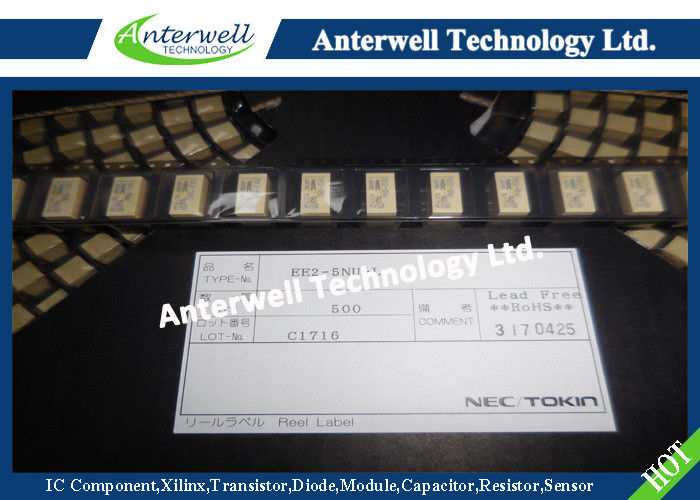

MINIATURE SIGNAL RELAY
EE2 SERIES
Compact and lightweight, High breakdown voltage, Surface mounting type
DESCRIPTION
The EE2 series surface-mounting type sustaining high-performance of NEC EC2 series.
FEATURES
• Compact and light weight
• 2 form c contact arrangement
• Low power consumption
• Reduced mounting space : 15 mm × 9.5 mm
• High-breakdown voltage of coil to contacts : 1500 Vac, 2500 V
(rise time : 2 µs, fall time : 10 µs)
• Low power consumption : 100 to 140 mW
• Capable of High-power switching : 700 Vac, 4.2 A, 4 times in case of accident
• UL recognized (E73266), CAS certified (LR46266)
APPLICATIONS
Electronic switching systems, PBX, terminal equipment, telephone system.
OUTLINE DRAWINGS AND DIMENSIONS
PERFORMANCE CHARACTERISTICS
| Contact Form | 2 Form c | ||
| Contact Material | Silver alloy with gold alloy overlay | ||
|
Contact Ratings (UL / CSA Rating) |
Maximum Switching Power | 60 W, 125 VA | |
| Maximum Switching Voltage | 220 Vdc, 250 Vac | ||
| Maximum Switching Current | 2 A | ||
| Maximum Carrying Current | 2 A | ||
| Minimum Contact Ratings | 10 mVdc, 10 µA *1 | ||
| Initial Contact Resistance | 50 mΩ typ. (Initial) | ||
| Nominal Operating Power | Non-Latch Type | 140 mW (3 to 12 V), 200 mW (24 V) | |
| Single Coil Latch Type | 100 mW | ||
| Single Coil Latch Type | 140 mW | ||
| Operate Time (Excluding Bounce) | Approx. 2 ms | ||
| Release Time (Excluding Bounce) | Approx. 1 ms without diode | ||
| Insulation Resistance | 1000 MΩ at 500 Vdc | ||
| Breakdown Voltage | Between Open Contacts |
1000 Vac (for one minute) 1500 V surge (10 × 160 µs *2) |
|
| Between Adjacent Contacts | |||
| Between Coil and Contact |
1500 Vac (for one minute) 2500 V surge, (2 × 10 µs *3) |
Double Coil 1000 Vac (for one minute) Latch type 1500 V surge (10 × 160 µs *2) |
|
| Shock Resistance |
735 m / s2 (75 G) (misoperating) 980 m / s2 (100 G) (destructive failure) |
||
| Vibration Resistance |
10 to 55 Hz double amplitude of 3 mm (20 G) (misoperating) 10 to 55 Hz, double amplitude of 5 mm (30 G) (Destructive failure) |
||
| Ambient Temperature | –40 to 85˚C | ||
| Coil Temperature Rise | 18 degrees at nominal coil voltage (140 mW) | ||
| Running specifications | No-load | 1 × 108 *4 operations (Non-latch type) 1 × 107 operations (latch type) | |
| Load | 50 Vdc, 0.1 A (resistive) 1 × 106 operations at 85˚C, 2 Hz | ||
| 10 Vdc, 10 mA (resistive) 1 × 106 operations at 85˚C, 2 Hz | |||
| Weight | Approx. 1.9 g | ||
*1 This value is reference value in the resistance load. Minimum capacity changes depending on switching frequency and environment temperatur and the load.
*2 rise time : 10 µs, fall time : 160 µs
*3 rise time : 2 µs, fall time : 10 µs
*4 This shows a number of operation where it can be running by which a fatal defect is not caused, and a number of operation by whicha steady characteristic is maintained is 1 × 107 times.
